Drawer slides · Ball-bearing slides

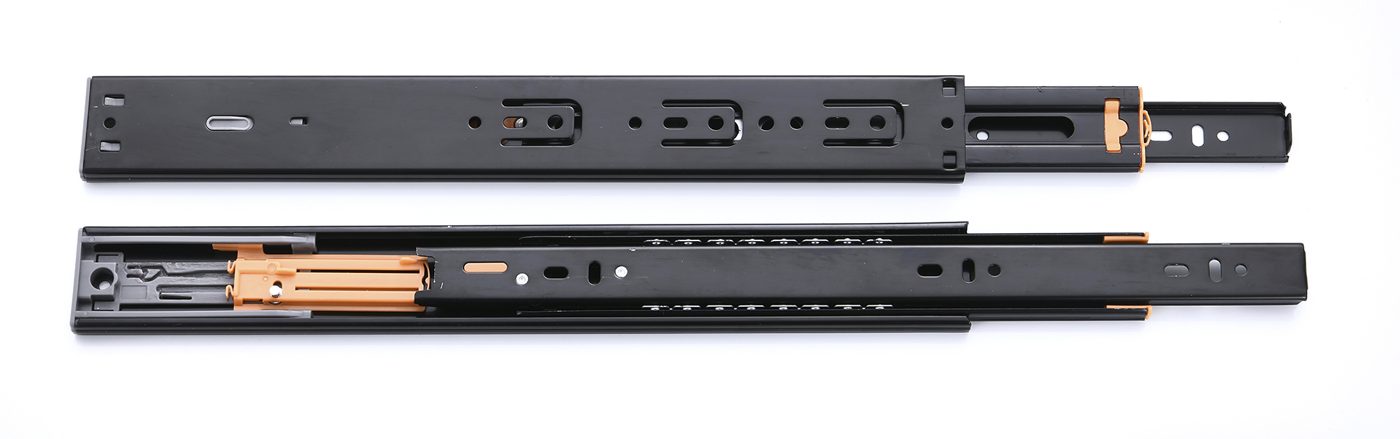

Three-section ball-bearing push-open slide
Model 7009
- Feature 1Push to open, no handle
- Feature 2Steel 1.0 × 1.0 × 1.2 mm
- Feature 335 kg per pair
- Feature 4200–500 mm (8"–20")
Packing: 15 pairs / carton. Minimum order one carton per order number. 7 order numbers listed under Variants.
| Type | Ball-bearing slides |
|---|---|
| Feature 1 | Push to open, no handle |
| Feature 2 | Steel 1.0 × 1.0 × 1.2 mm |
| Feature 3 | 35 kg per pair |
| Feature 4 | 200–500 mm (8"–20") |
| Extension | [to confirm] |
| Lengths | 7009 2008 – 2020: 200 to 500 mm |
| Load capacity | 35 kg per pair |
| Width | [to confirm] |
| Steel thickness | Steel 1.0 × 1.0 × 1.2 mm |
| Closing | Push to open, no handle |
| Mounting | [to confirm] |
Sources: dealer price list 2026-04. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 7009 2008 | 8"/200mm long |
| 7009 2010 | 10"/250mm long |
| 7009 2012 | 12"/300mm long |
| 7009 2014 | 14"/350mm long |
| 7009 2016 | 16"/400mm long |
| 7009 2018 | 18"/450mm long |
| 7009 2020 | 20"/500mm long |
| Packing | 15 pairs / carton |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
