Cabinet lighting and power.
Recessed and surface LED strips, adjustable shelf and corner lights, lit handle-less profiles for kitchens, 24 W drivers, sensor switches, distribution boxes, pop-up worktop sockets and a movable power track. Everything that puts light and power inside a cabinet.
5 types. Pick by the job.
LED strips
Recessed LED strips in narrow and wide profiles, weld-free connectors, 3000 K.
Shelf & corner lights
Recessed, front-mount and rotating corner lights with adjustable beam angle, 1000 mm.
Lit handle-less profiles
3 m aluminium handle-less profiles with a built-in light for base and wall cabinets.
Drivers, sensors & switches
24 W drivers, service-hatch power module, hand-wave, PIR, door-contact and touch switches, wireless central-control switches.
Sockets & power track
Pop-up worktop socket with optional Bluetooth speaker; 500 mm power track with socket and USB adapters.
Test figures from WEITE's own testing centre. Reports available with samples. About the factory ›
All 17 models.
Order number = model + variant suffix; every order number from the price list is listed on the model page. Cards marked [PHOTO TO ADD] have no studio photo yet.
LED strips · 4 models
Recessed LED strips in narrow and wide profiles, weld-free connectors, 3000 K.
- 10 W/m, 3000 K, 3 m
- Weld-free connectors, end caps and cable
- 10 W/m, 3000 K, 3 m
- Vertical emission
- 4 W to 9 W by length
- Up to 1000 mm, with end caps
- 4 W to 9 W by length
- Up to 1000 mm
Shelf & corner lights · 3 models
Recessed, front-mount and rotating corner lights with adjustable beam angle, 1000 mm.
- 1000 mm, single-end cable
- Adjustable beam angle
- 1000 mm, single-end cable
- Adjustable beam angle
- 1000 mm
- Rotates to set the angle
Lit handle-less profiles · 1 models
3 m aluminium handle-less profiles with a built-in light for base and wall cabinets.
Drivers, sensors & switches · 7 models
24 W drivers, service-hatch power module, hand-wave, PIR, door-contact and touch switches, wireless central-control switches.
- 24 W driver in a 248 × 88 mm hatch
- Hatch shell sold separately
- 24 W
- 24 W, 12 V
- Hand-wave, PIR, door-contact or touch
- 60 W, black
- Single or double door-contact, touch, PIR
- Through-wood hand-wave and touch versions
- 6-way or 10-way

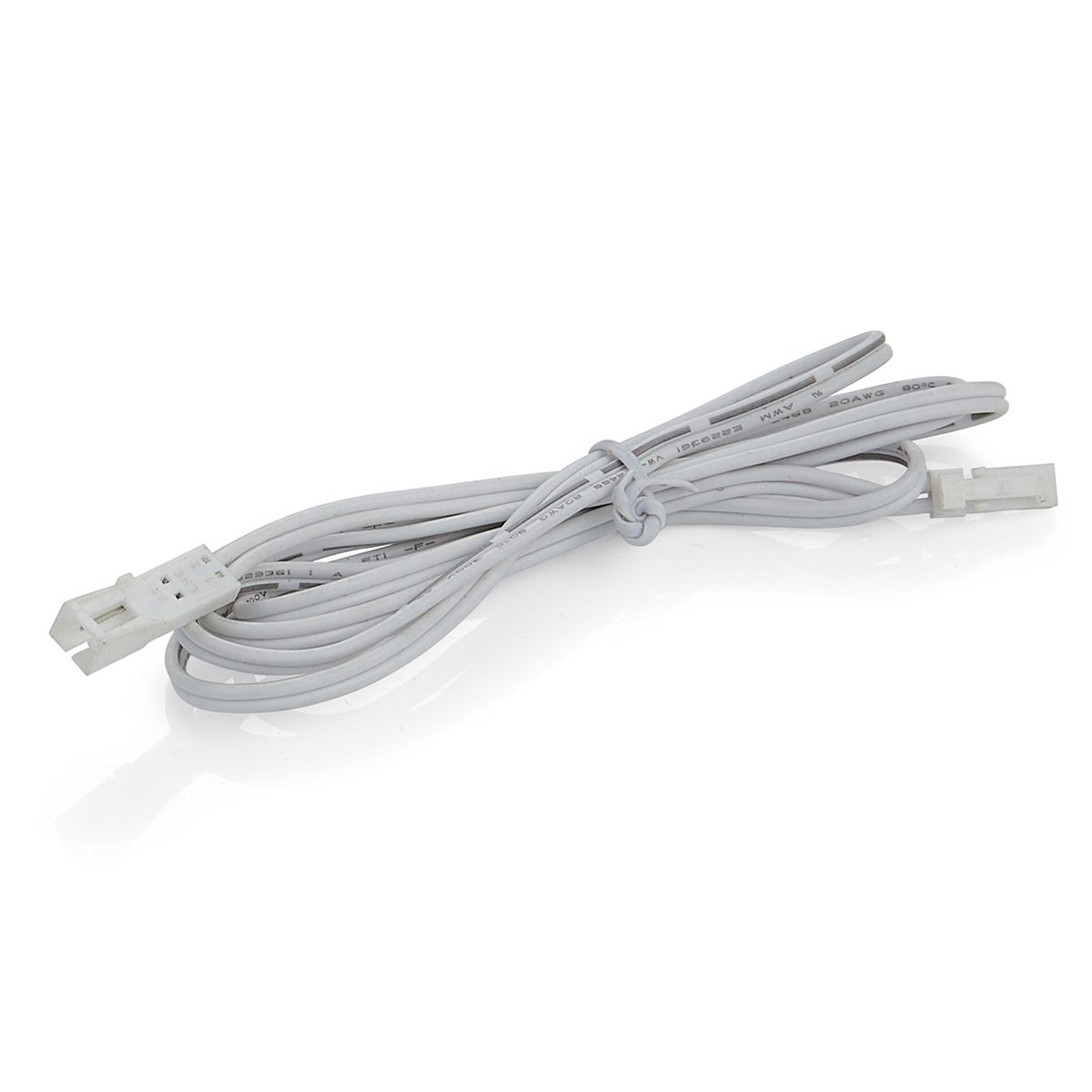

- 2 m, double-ended
Sockets & power track · 2 models
Pop-up worktop socket with optional Bluetooth speaker; 500 mm power track with socket and USB adapters.
Lighting a cabinet.

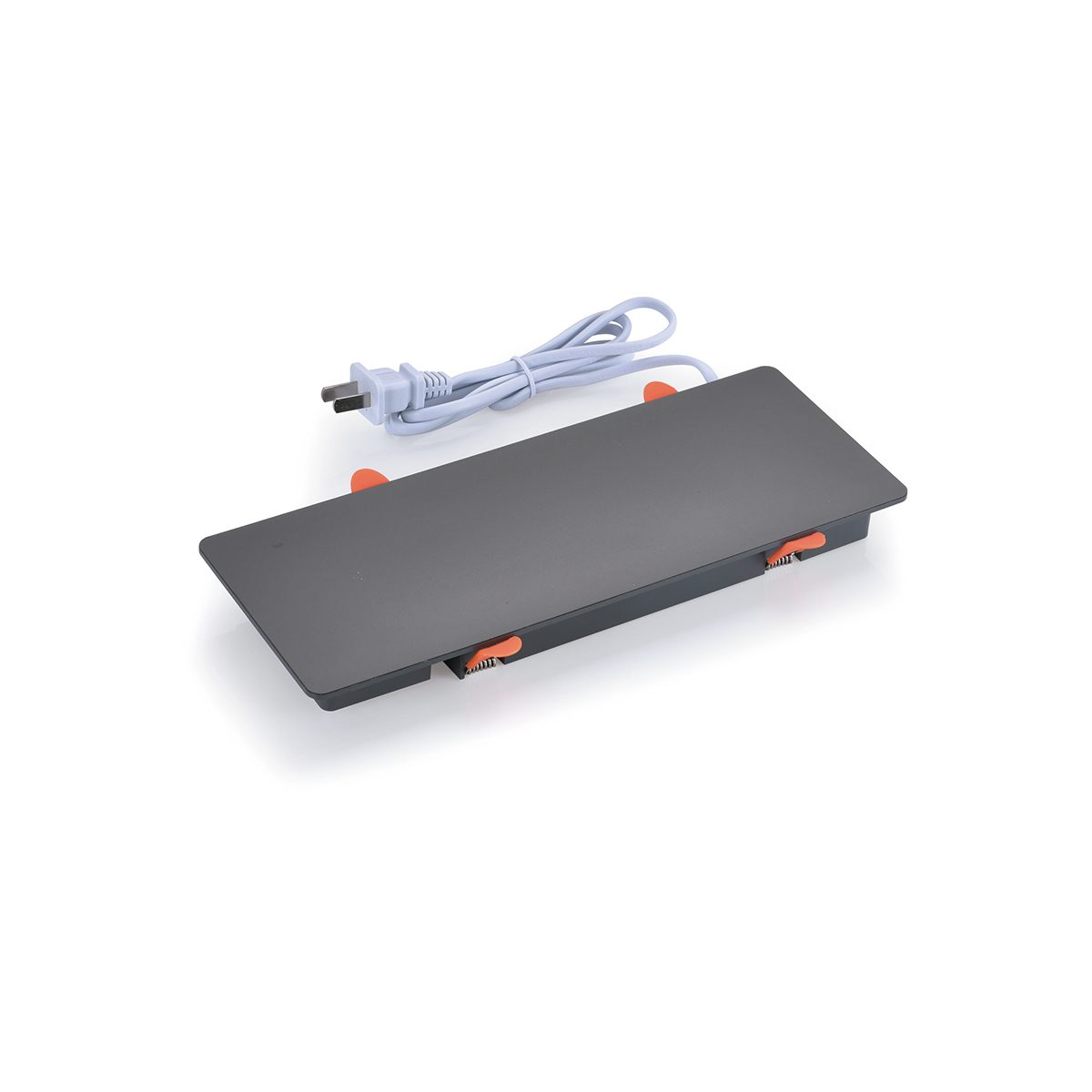

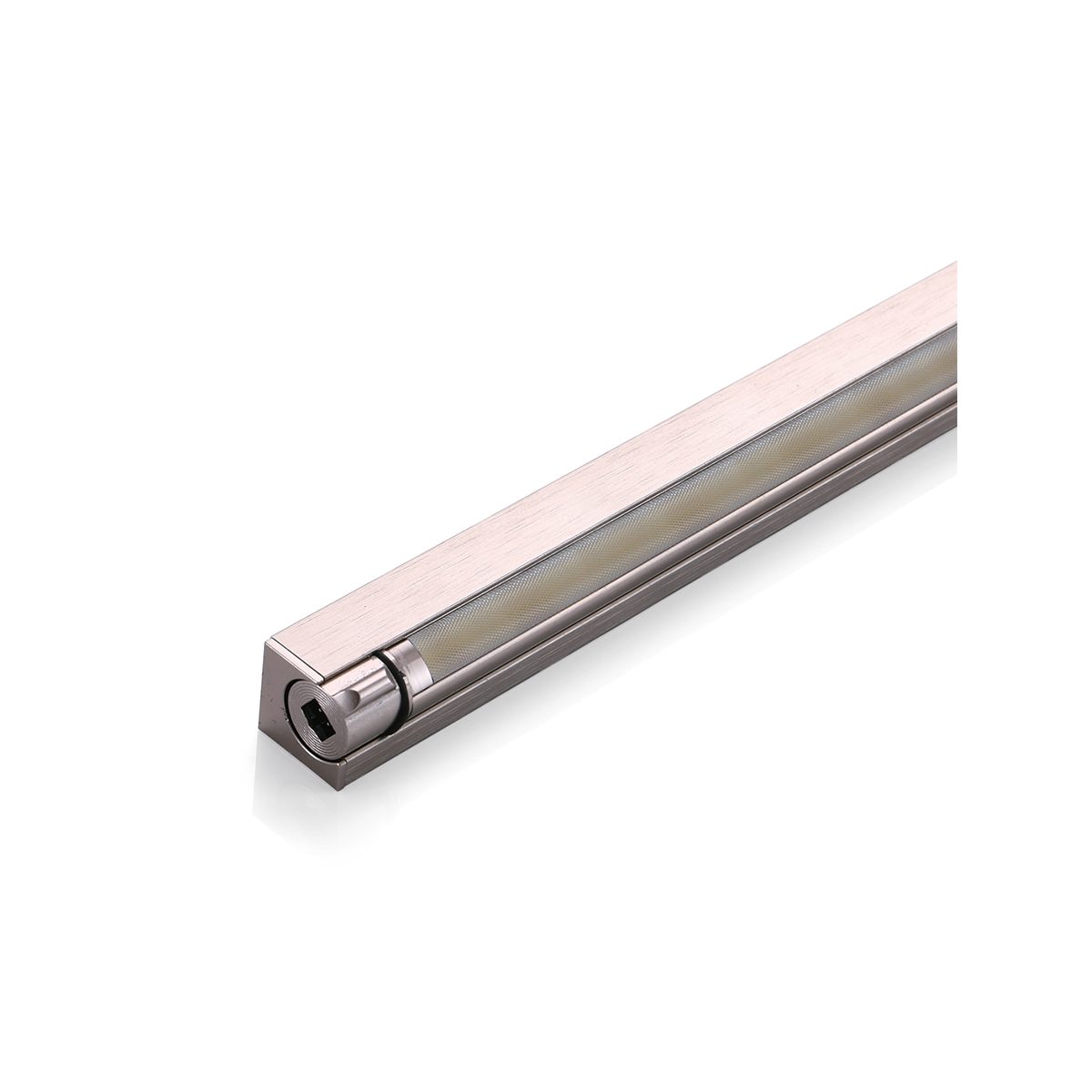

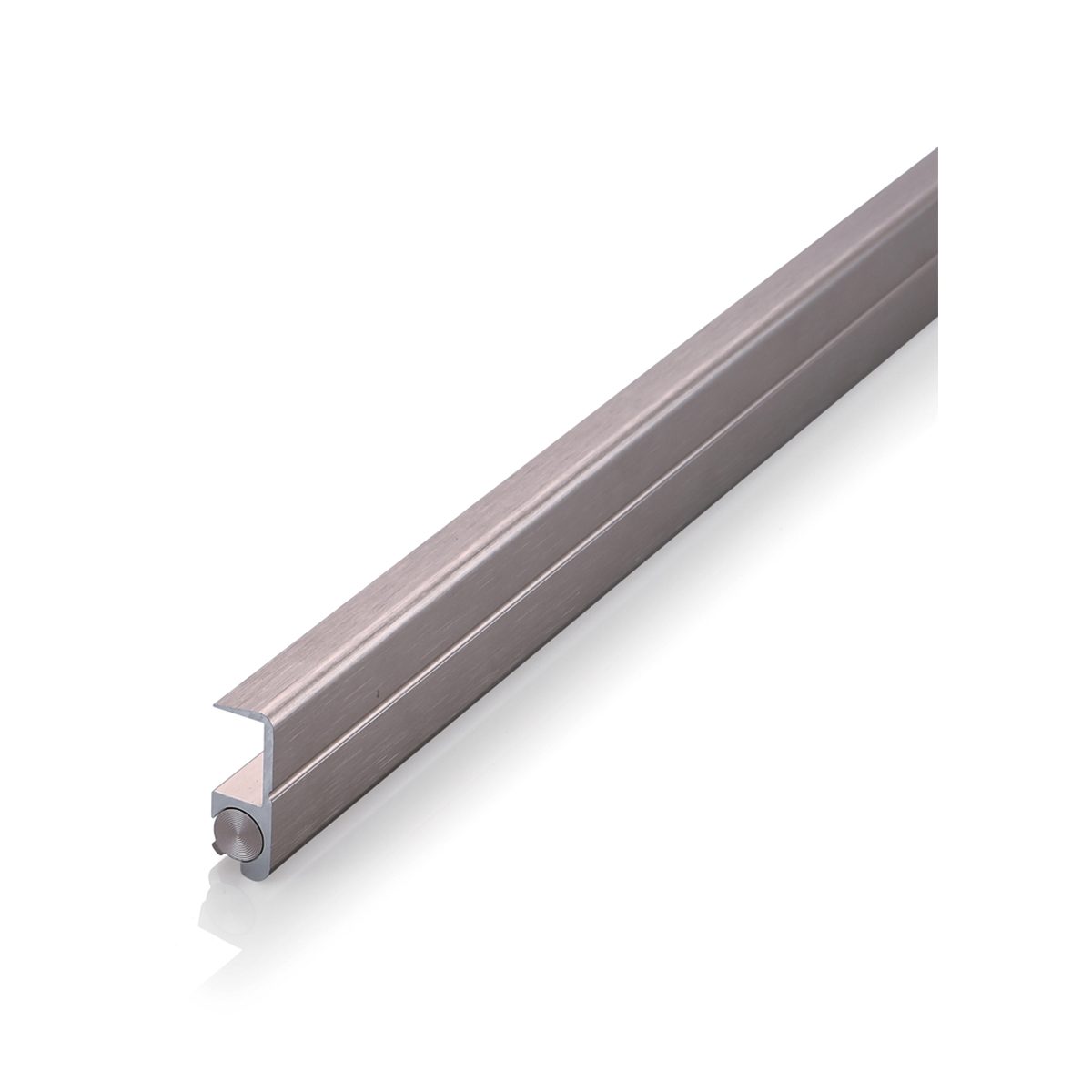

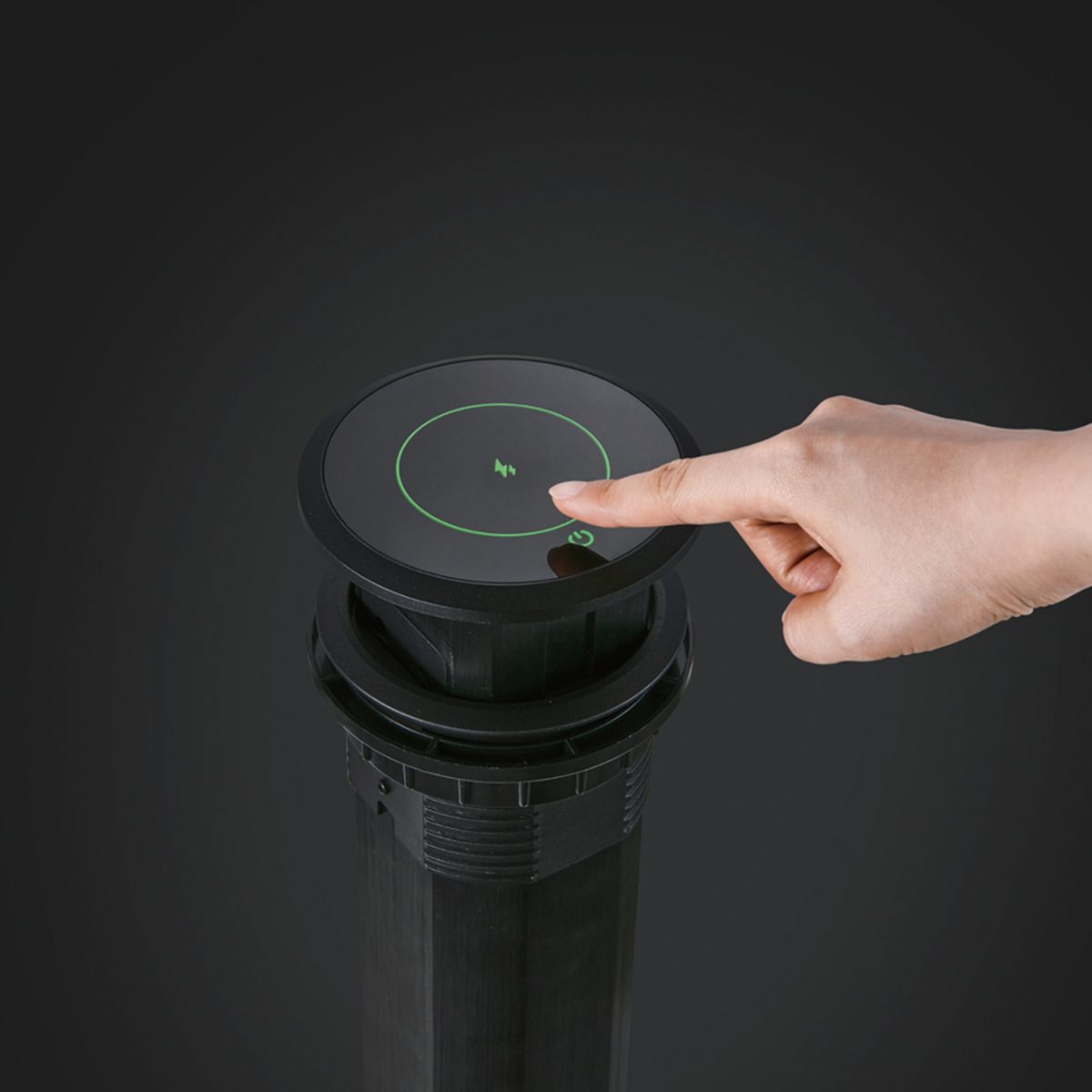

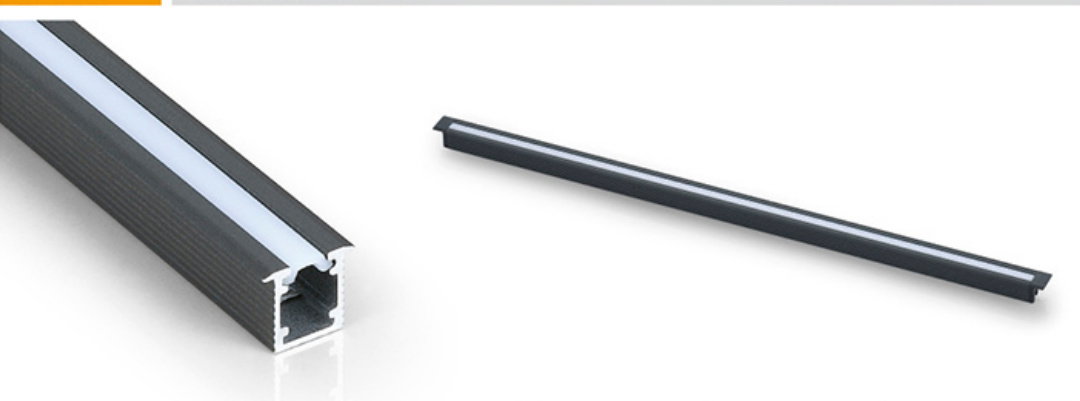

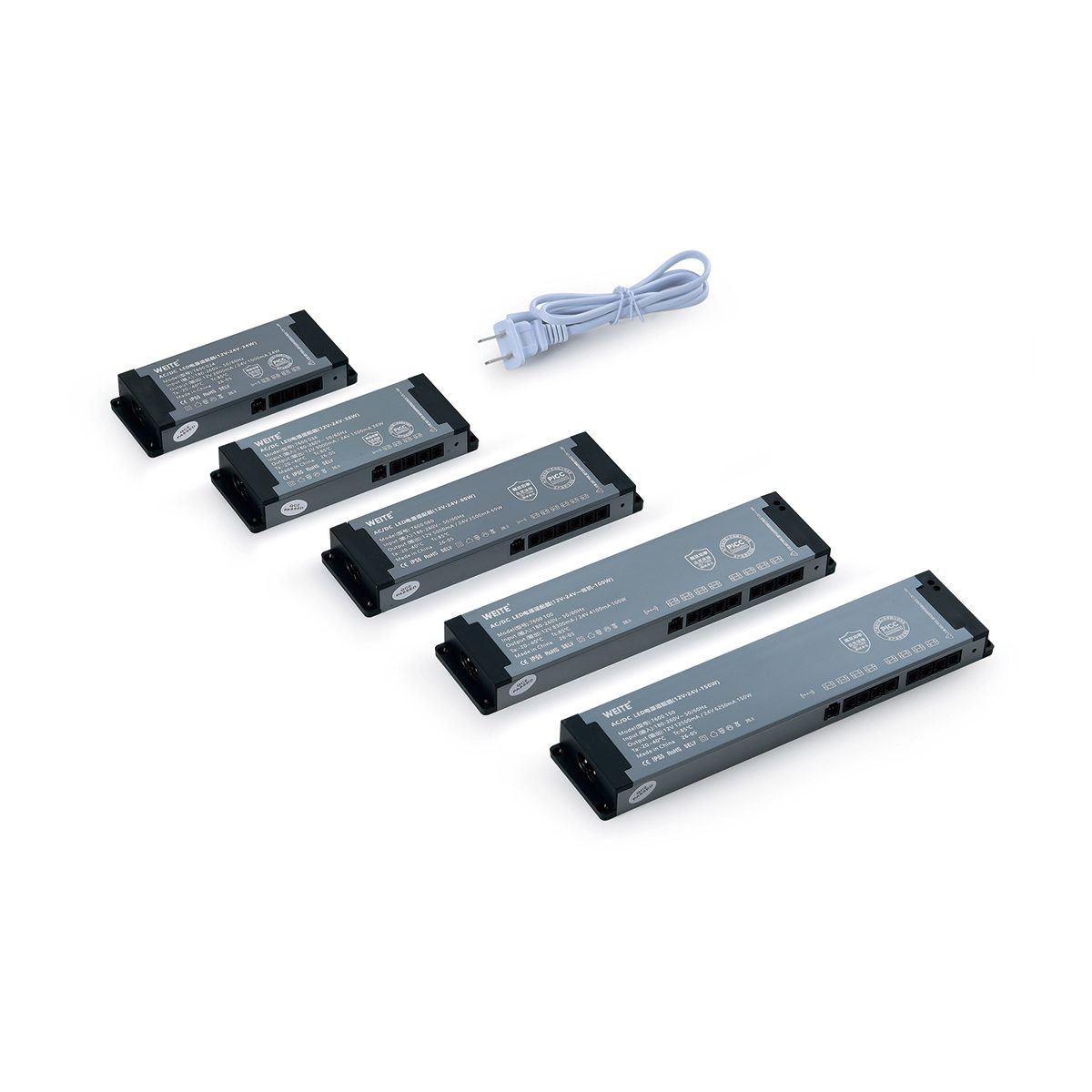

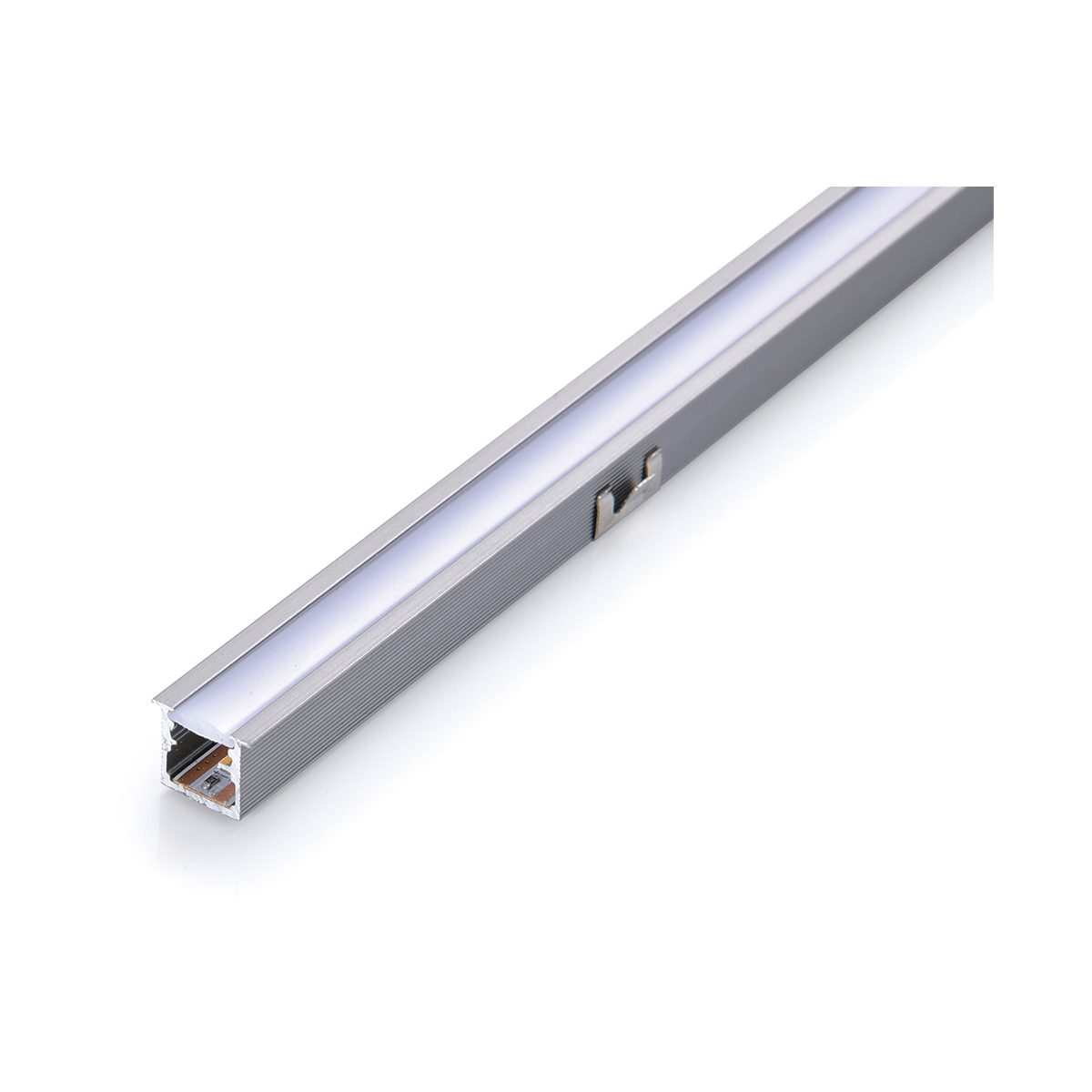

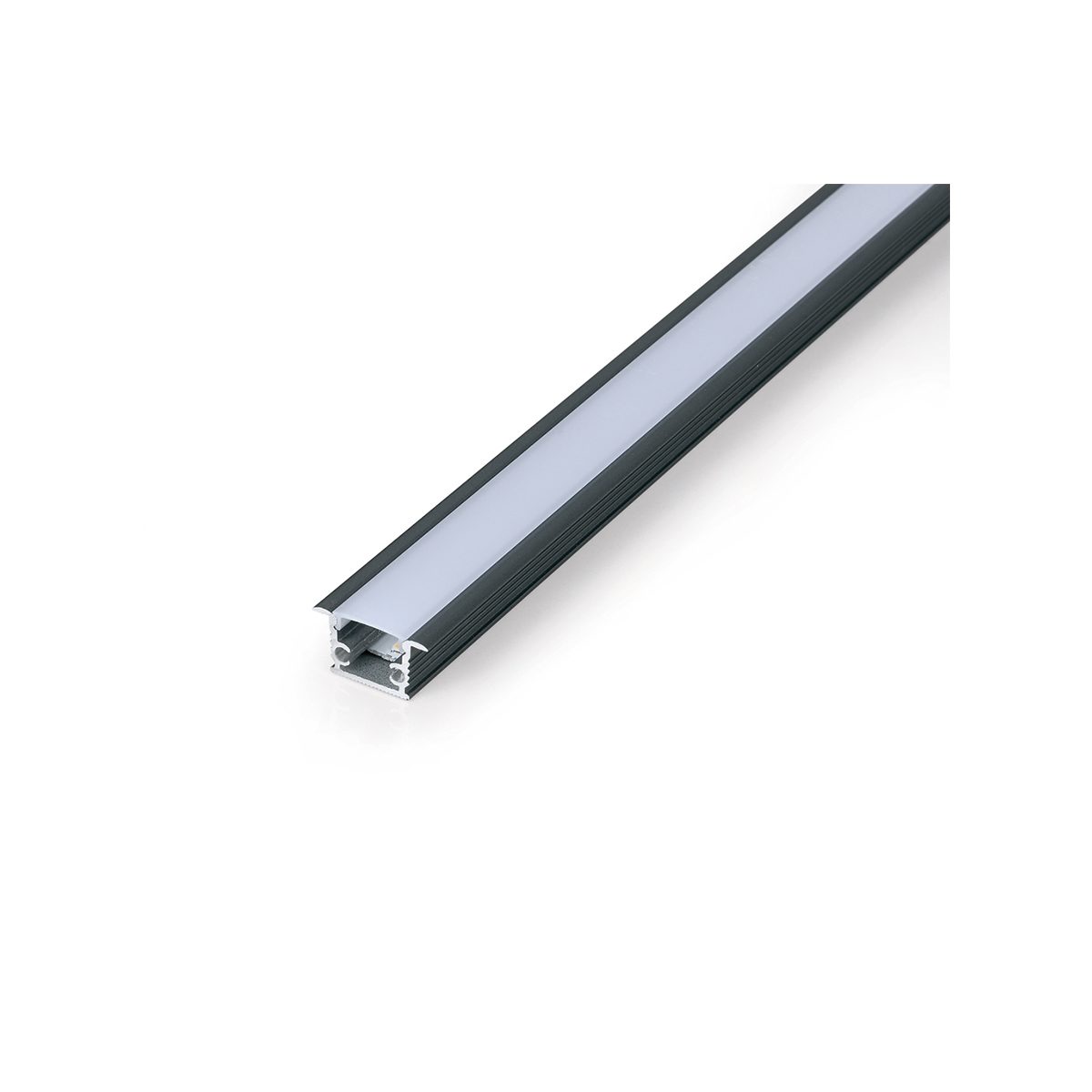

Start from the driver: the 7600 and 7610 supply 24 W at 12 V, enough for about 2.4 m of the 10 W/m strips or several shelf lights. The 7617 puts the driver behind a service hatch so it can be replaced without dismantling the cabinet. Strips go into a routed groove (7456 narrow, 7458 wide, 7486 weld-free vertical emission) or onto shelves as 7599 recessed, 7598 front-mount and 7597 rotating corner lights. Switching is by 7612 sensors (hand-wave, PIR, door-contact or touch) or the 7613 wireless central-control family, which also works through wood. In kitchens the 5070 handle-less profile and the 5104 plinth carry their own light, and the 7608 pop-up socket and 7609 power track bring power to the worktop.
Questions distributors ask.
Do the strips come with connectors?
The 7486 system is weld-free: end caps, clips and cable are in the 7486 accessory set. The 7456 and 7458 ship with end caps.
What driver do I need?

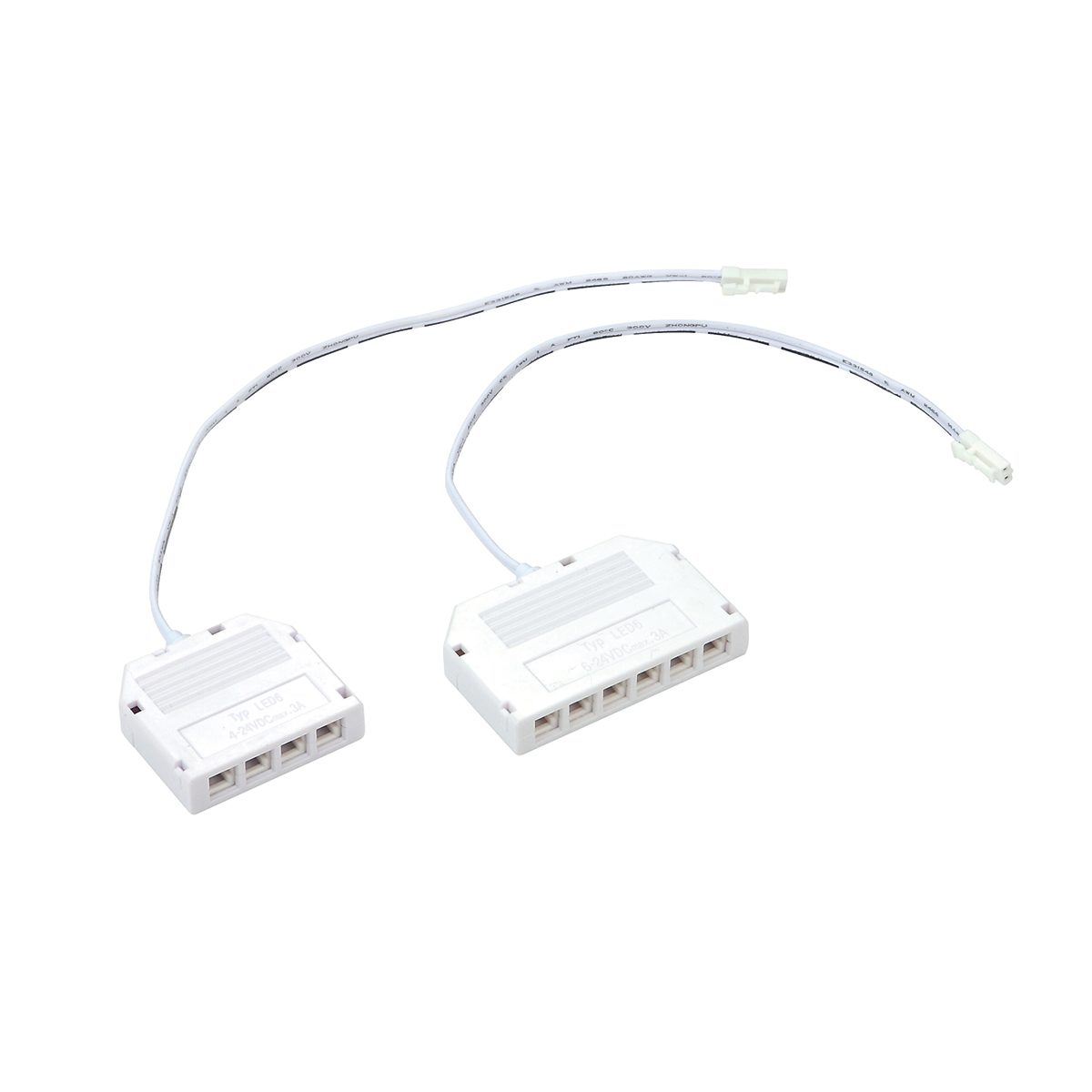

One 24 W driver per 2.4 m of 10 W/m strip. Use the 7615 distribution box to feed several lights from one driver.
Are the switches wired or wireless?

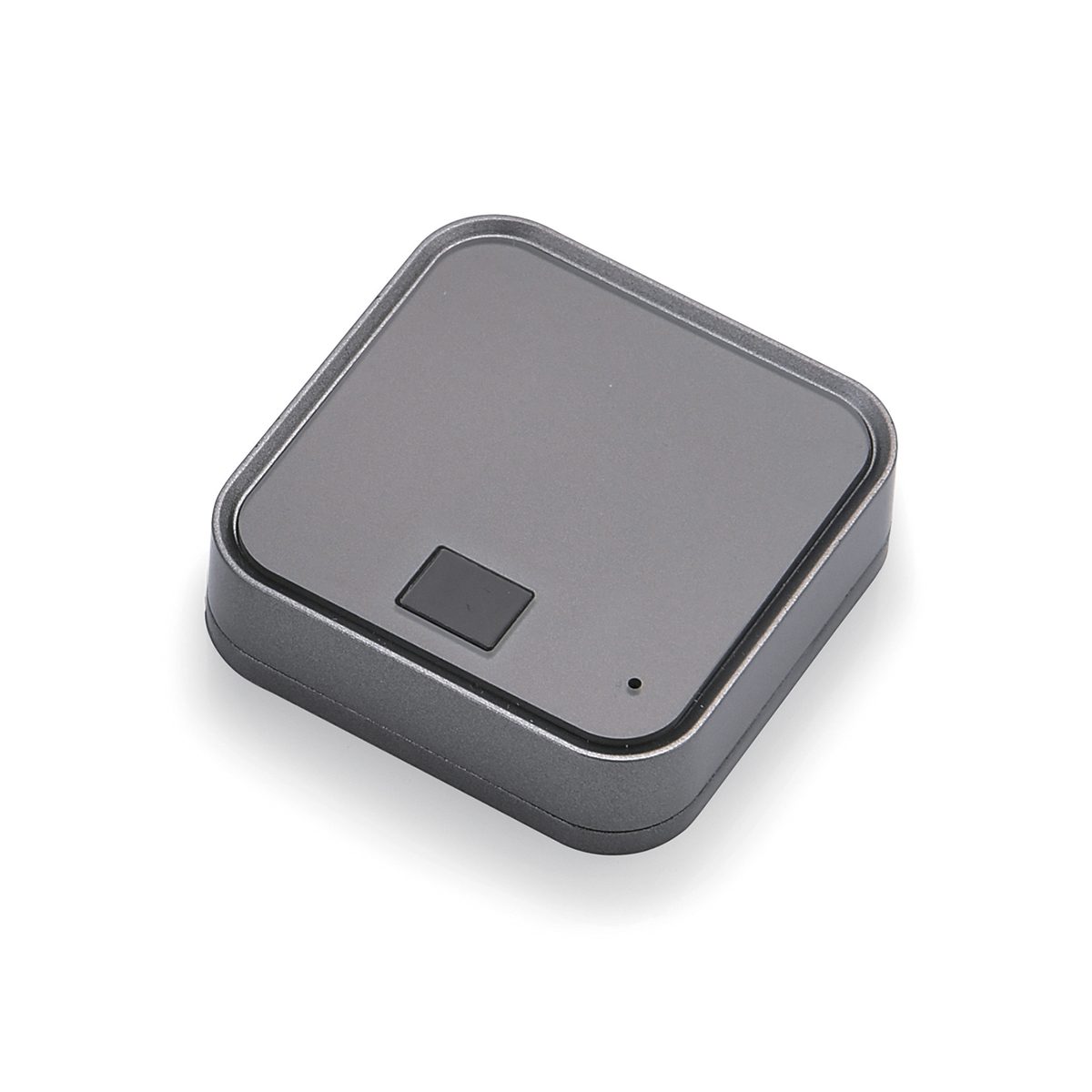

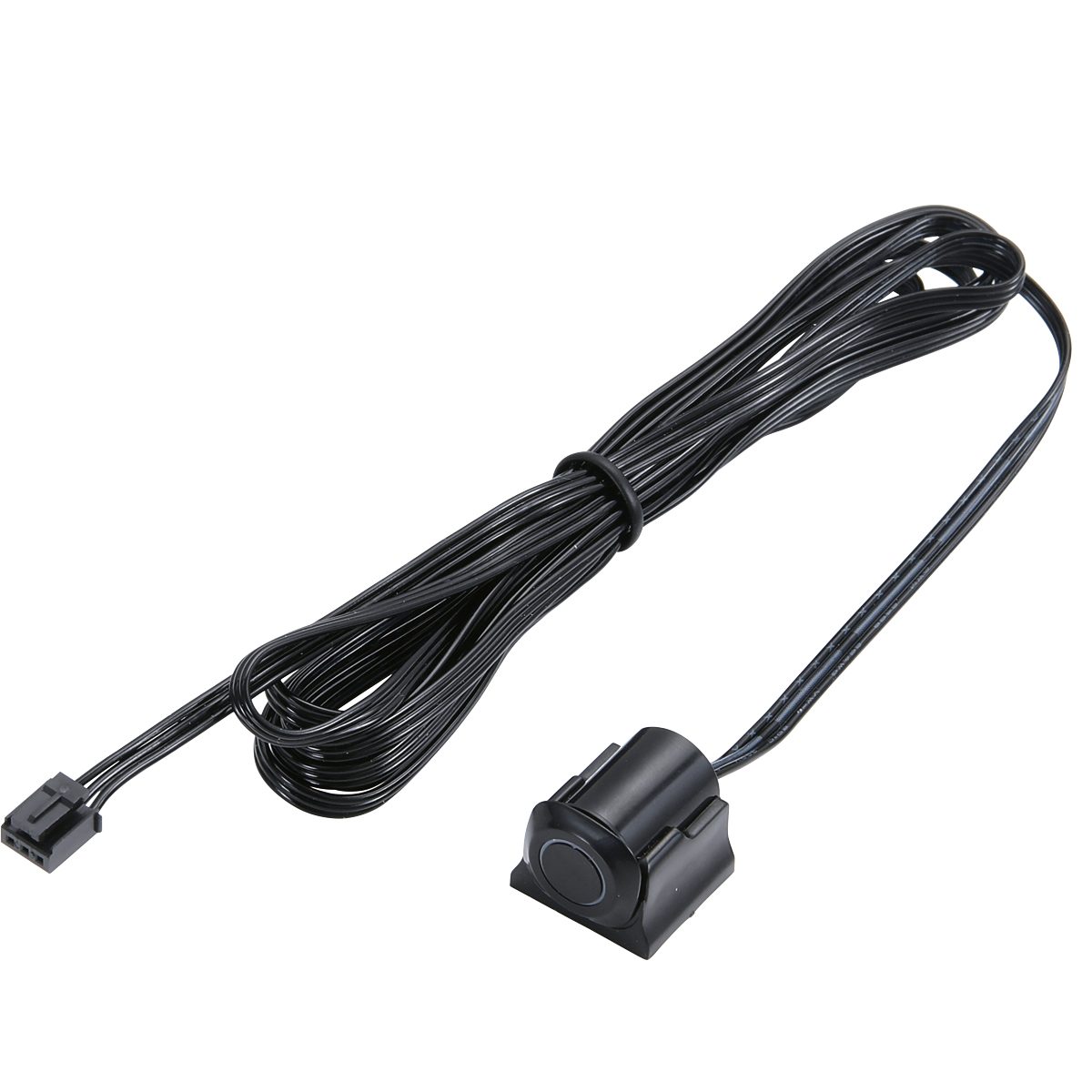

Both. The 7612 range is wired, surface or recessed; the 7613 range is wireless with a central controller.
Is the power track safe for kettles?

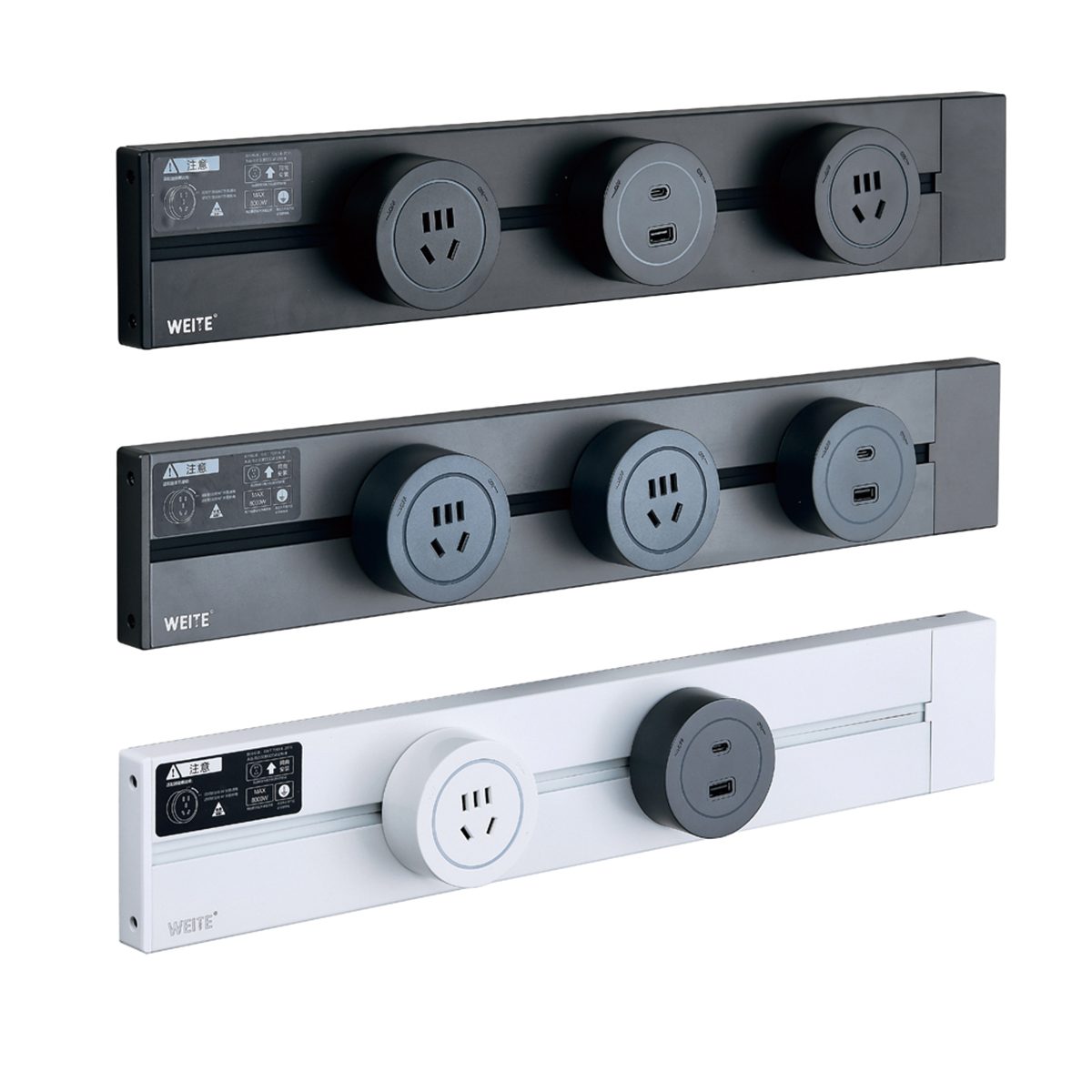

The 7609 track is rated 250 V, 32 A, 8000 W in total; each socket adapter is rated 10 A, 2500 W. [to confirm] certification for your market.
What is the minimum order?
One carton per item: 25 to 200 pieces depending on the product.
