Drawer slides · Ball-bearing slides

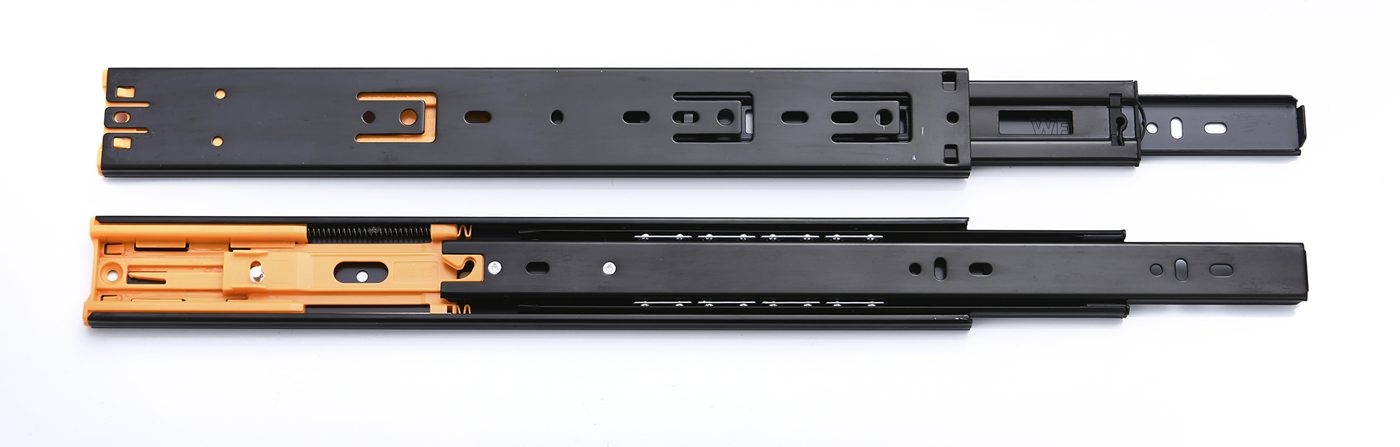

Three-section ball-bearing soft-close slide, single spring
Model 7001Best seller
- Soft-close damper
- Steel 1.0 × 1.0 × 1.2 mm
- 35 kg per pair
- 200–500 mm (8"–20")
Packing: 15 pairs / carton. Minimum order one carton per order number. 7 order numbers listed under Variants.
| Type | Ball-bearing slides |
|---|---|
| Steel thickness | 1.0x1.0x1.2 mm |
| Width | 45 mm |
| Load capacity | 35 kg |
| Lengths | 200–500 mm |
| Closing | Soft-close damper |
Sources: dealer price list 2026-04.
| Order number | Variant / size / colour |
|---|---|
| 7001 2008 | 8"200mm long |
| 7001 2010 | 10"250mm long |
| 7001 2012 | 12"300mm long |
| 7001 2014 | 14"350mm long |
| 7001 2016 | 16"400mm long |
| 7001 2018 | 18"450mm long |
| 7001 2020 | 20"500mm long |
| Packing | 15 pairs / carton |
|---|---|
| Minimum order | One carton per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
