Push-to-open.
Push latches, self-locking push openers and damped door openers for handle-less cabinet doors. Magnetic or rubber heads, 20 to 40 N of force, surface, clip-on or recessed mounting. Pair them with WEITE spring-free or push-open hinges.
3 types. Pick by the cabinet.
Start with the cabinet; the type follows.
Push latches
Press the door, it springs open; the magnet or rubber head holds it shut. Surface-mount, quick-mount or recessed versions.
Self-locking push openers
A mechanical claw locks the door closed and releases it fully open on a push. For spring-free and push-open hinges.
Damped door openers
One push opens the door and any push closes it softly, on tall doors up to 2700 × 600 mm and 25 kg.
All 12 models.
Order number = model + size or colour suffix. Cards marked [PHOTO TO ADD] are in the price list but have no studio photo yet. Model pages follow the 6913 template once the data rows are confirmed.

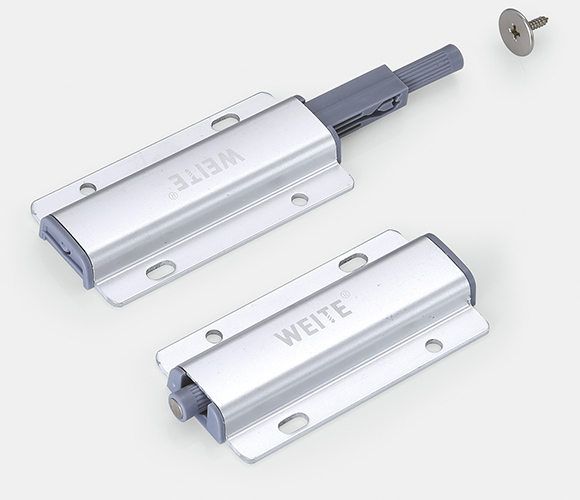

Push latches · 6 models
Press the door, it springs open; the magnet or rubber head holds it shut. Surface-mount, quick-mount or recessed versions.
- 40 N spring force
- 100,000 cycles tested
- 30 N spring force
- Triggers with a 1.6 mm door gap
- 35 N spring force
- Slide-rail quick mounting, tool-free
- 30 N, 35 mm stroke
- 1.6 mm trigger distance
- Hidden in a Ø10 × 71 mm bore
- 30 N, 3800 GS magnet
- 23 N spring force
- Aluminium housing, silver

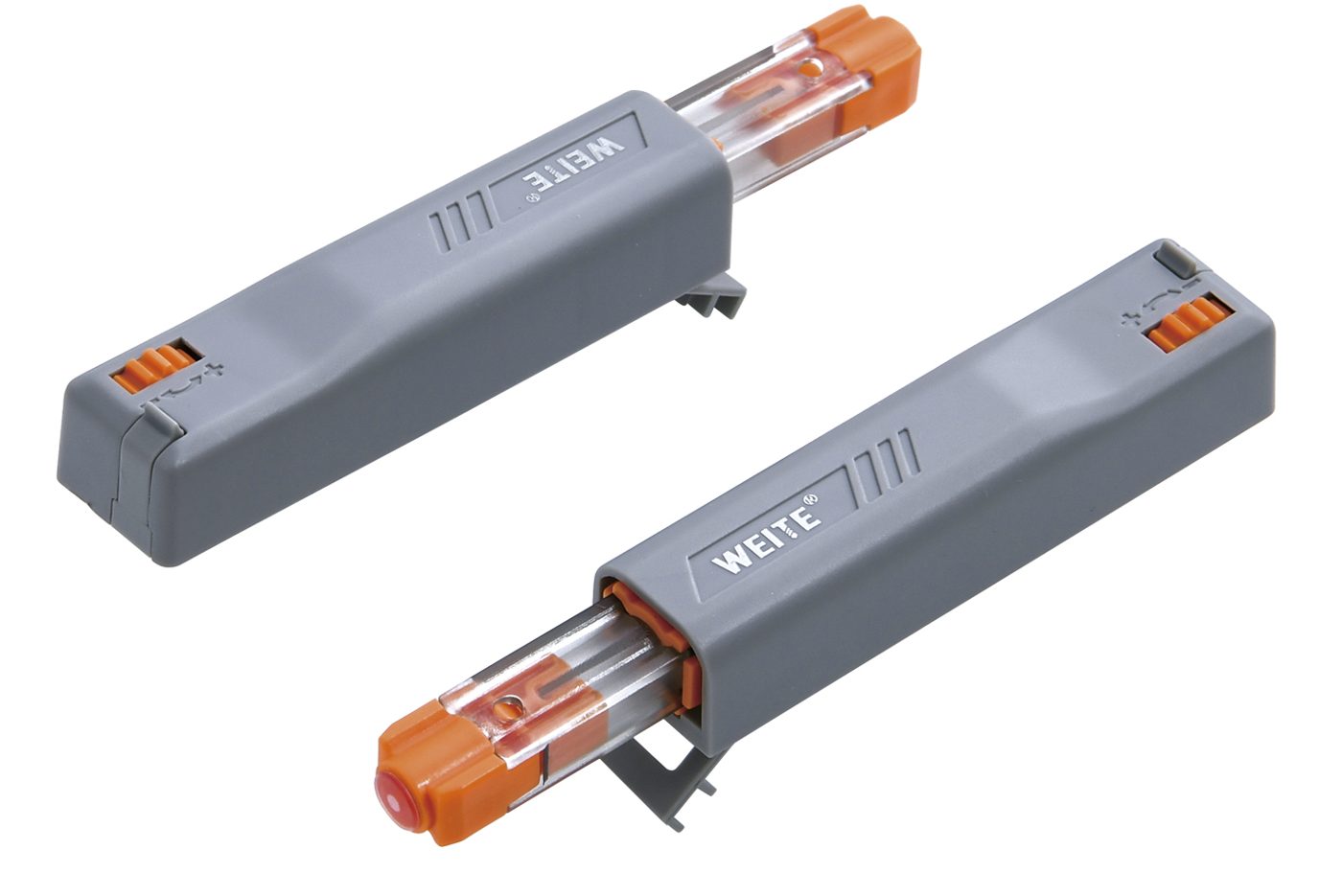

Self-locking push openers · 4 models
A mechanical claw locks the door closed and releases it fully open on a push. For spring-free and push-open hinges.
- 23 N
- Slide-rail quick mounting
- 20 N
- Positioning stop
- 30 N
- Positioning stop
- 30 N
- 1.6 mm trigger distance
Damped door openers · 2 models
One push opens the door and any push closes it softly, on tall doors up to 2700 × 600 mm and 25 kg.
How push-to-open works, and which part you need.
A handle-less door needs two things: a hinge that does not pull the door shut, and a device that holds it closed and pushes it open. WEITE supplies both. On the hinge side use the 6920 spring-free hinge or the 7551 push-open hinge from the cabinet hinges family. On the device side there are three types.
Push latches

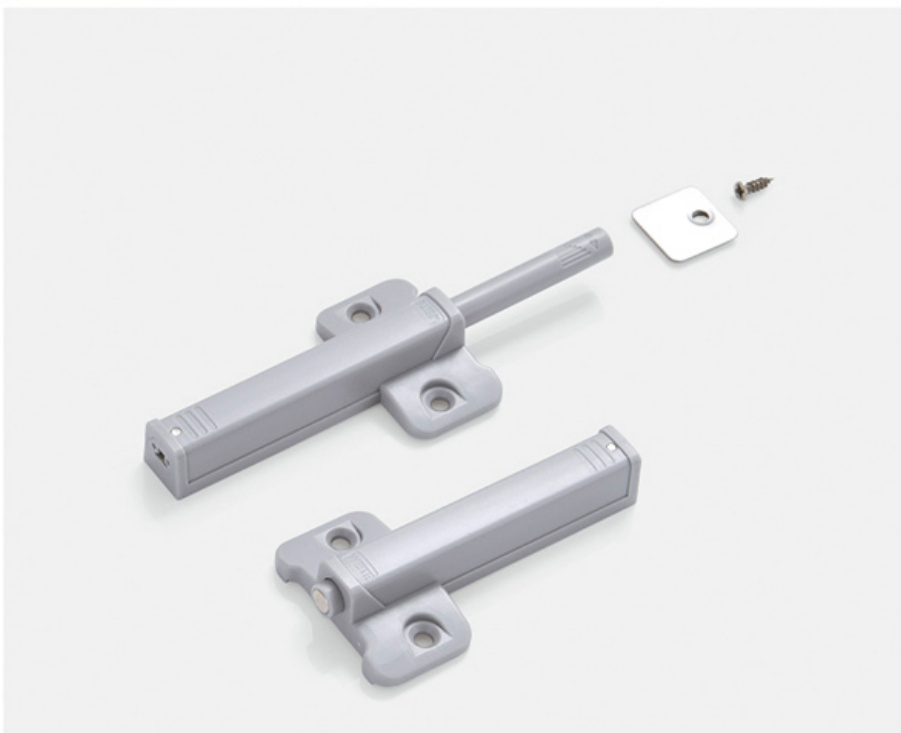

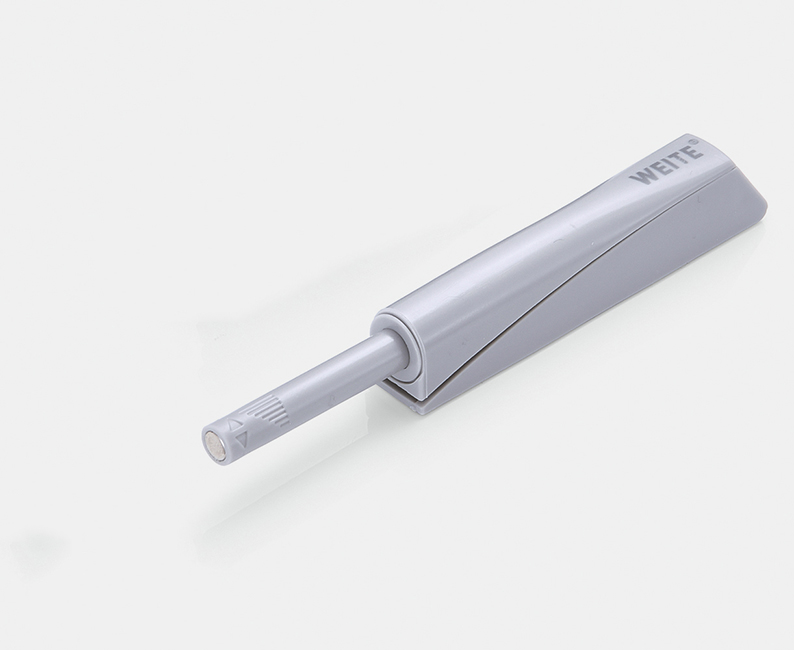

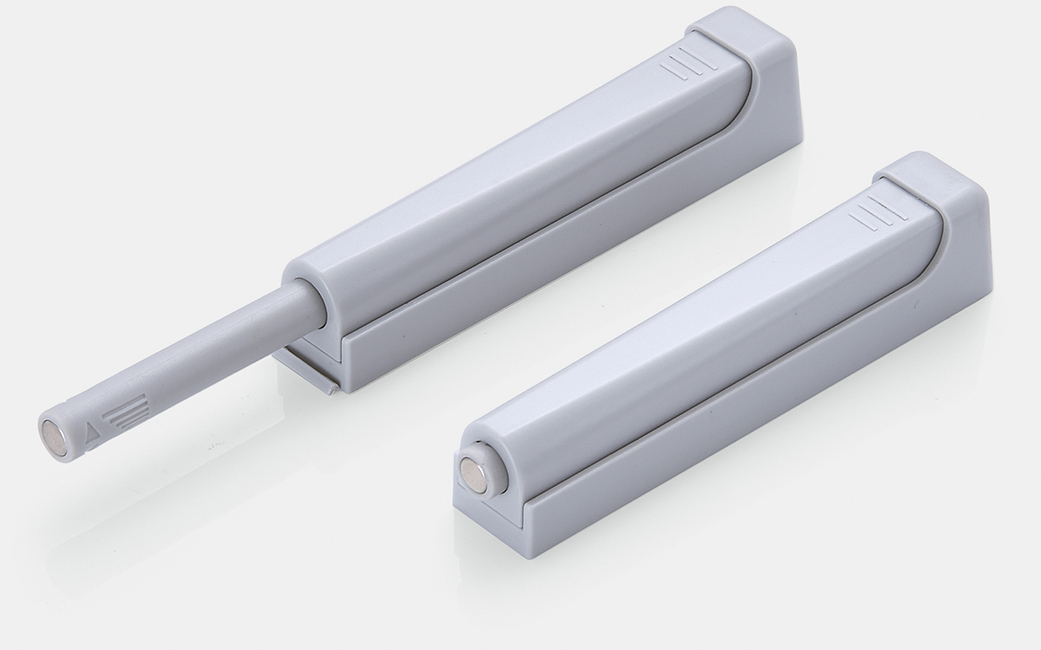

A push latch is a spring-loaded plunger with a magnetic or rubber head. Press the door, the plunger fires and the door swings open 40 to 50 mm; close it and the magnet holds it. Spring force is the main spec: 23 N for small doors, 30 N for standard doors, 35 to 40 N for tall or heavy doors. Mounting is the second: the 7427 and 7530 screw to the cabinet, the 7556 slides onto a rail for tool-free replacement, and the 7542 hides inside a Ø10 mm bore.

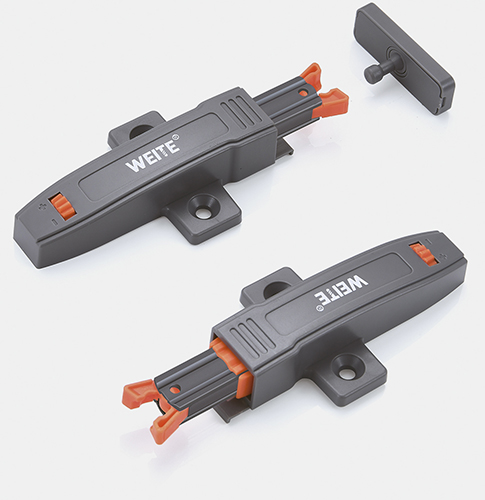

Self-locking push openers
Instead of a magnet, a mechanical claw grips a striker on the door. The door cannot be pulled open by a draught or a child, and one push releases it. Use these with spring-free hinges when a positive lock is wanted, and with the 7551 push-open hinge on kitchen fronts.
Door openers

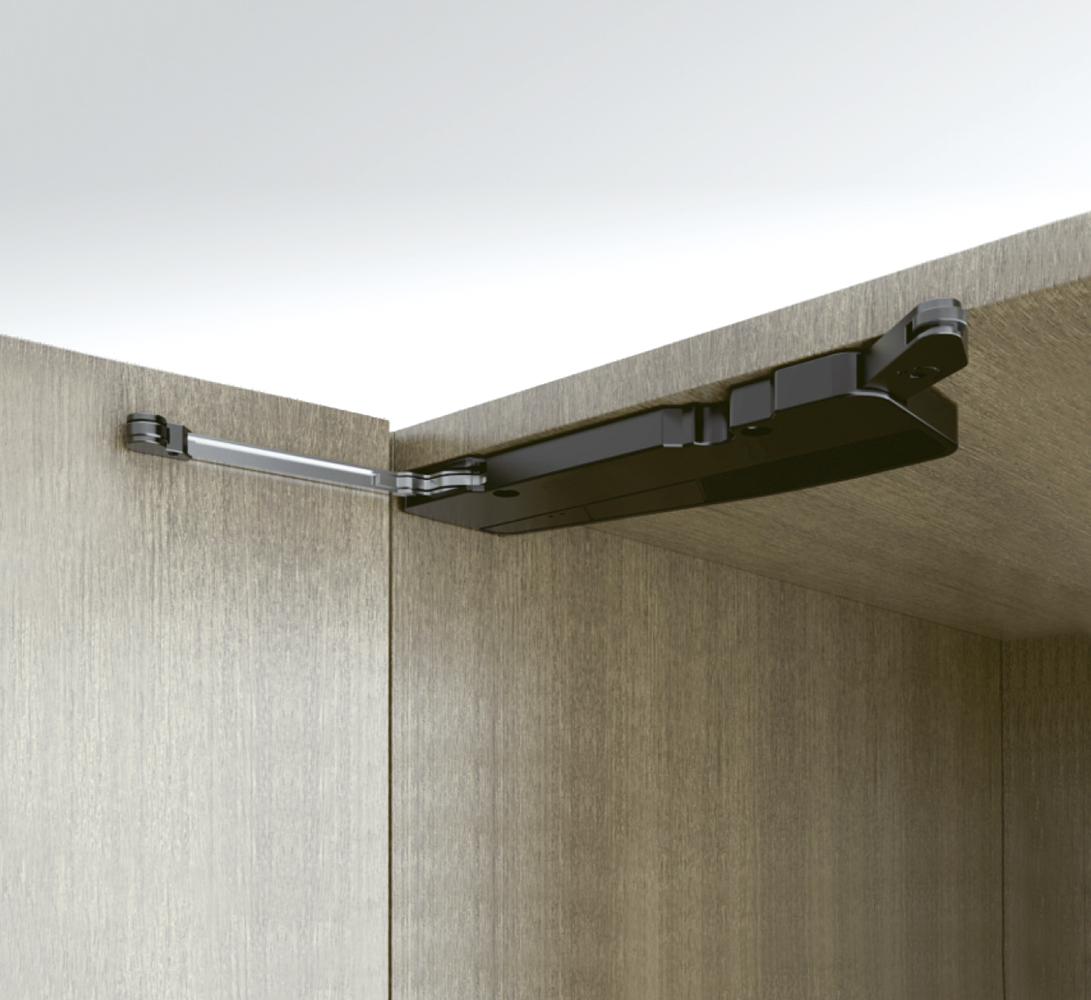

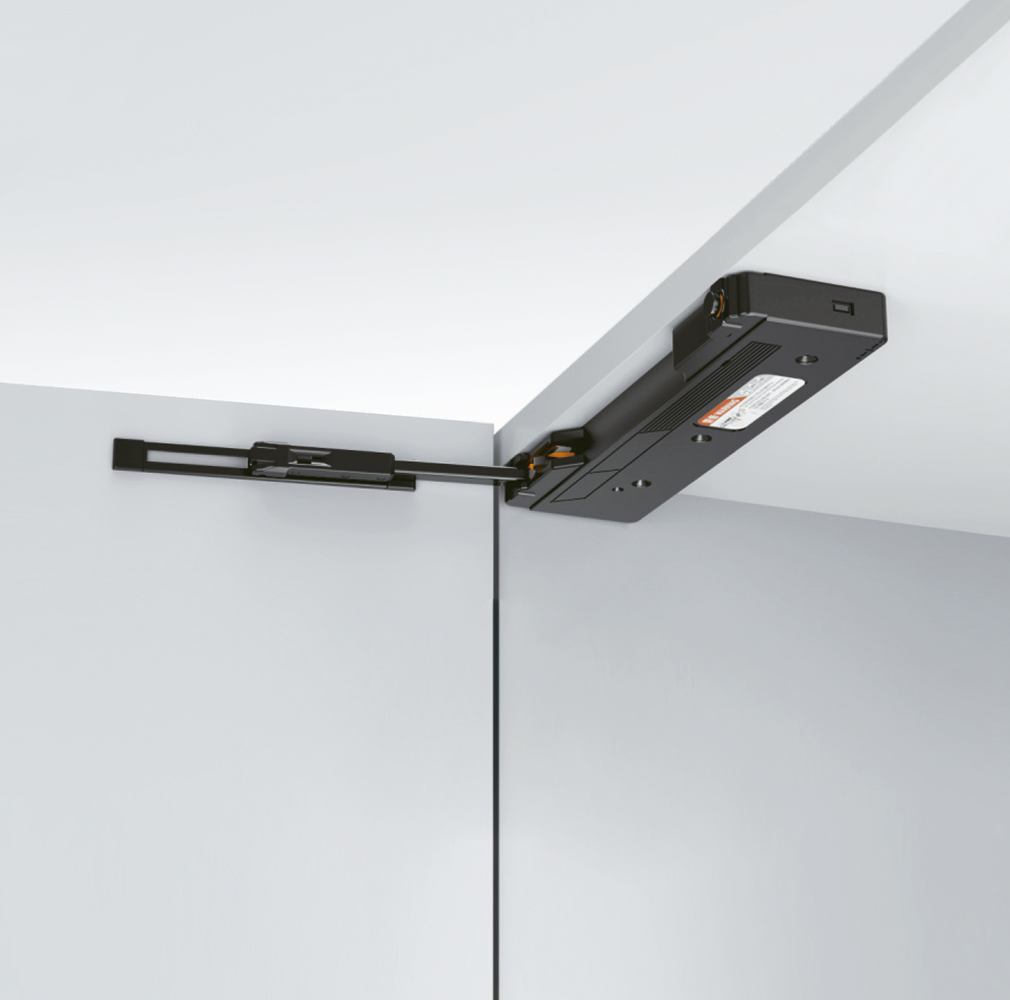

For tall wardrobe doors up to 2700 mm, the 7555 opens the door automatically on a push and closes it softly from any angle; the 7554 mini version does the same for lighter doors. Both need spring-free hinges and mount on the top and bottom of the cabinet.
Ordering
Colours are light grey, black, white or silver depending on the model; packing is 200 to 1000 pieces per carton. One carton per item is the minimum. Ask for the hinge-and-latch pairing chart when you sample.
Questions distributors ask.
Which hinge goes with a push latch?
A spring-free hinge such as the 6920, so the door does not fight the latch. Rubber-head latches must not be used with spring-free hinges; use the magnetic version.
Magnetic or rubber head?
Magnetic heads hold the door shut on their own. Rubber heads are quieter and are used with a self-closing hinge that keeps the door shut.
How much force do I need?
23 N for small doors, 30 N for standard kitchen and wardrobe doors, 35 to 40 N for tall or heavy doors. Two latches on a wide door are better than one strong one.
Can the latch be hidden?

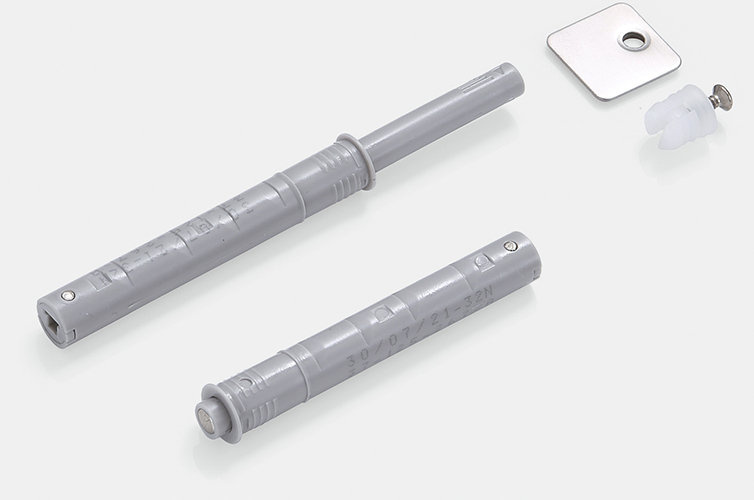

Yes. The 7542 fits inside a Ø10 × 71 mm bore in the side panel and shows only its head.
What is the minimum order?
One carton per item: 200 to 1000 pieces depending on the model.
