Drawer slides · Ball-bearing slides

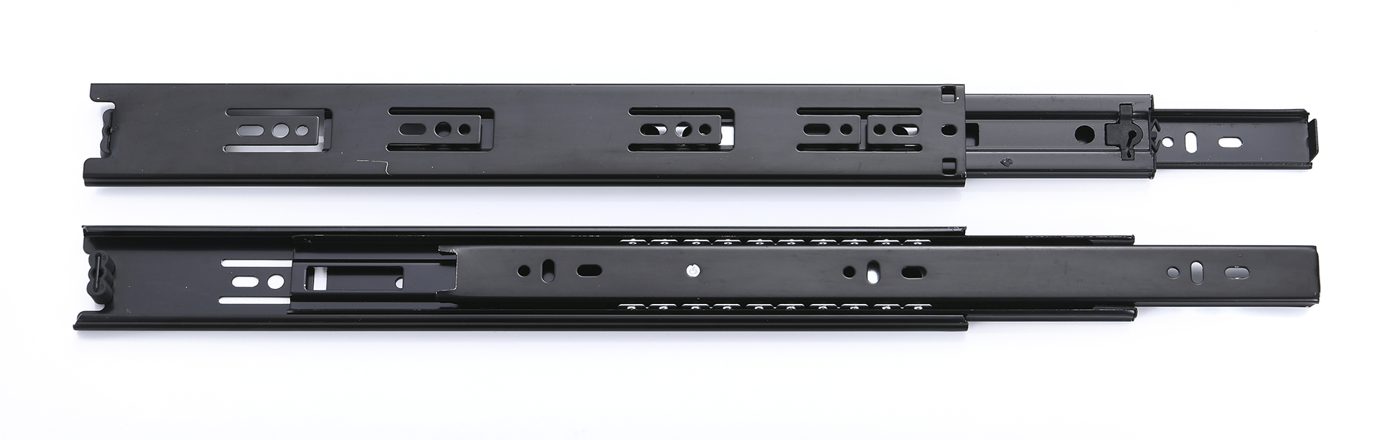

Three-section ball-bearing slide, 1.0 mm, plain
Model 7007
- Feature 1Steel 0.8 × 1.0 × 1.0 mm
- Feature 245 mm wide, 25 kg per pair
- Feature 3200–500 mm (8"–20")
- Feature 4Cold-rolled steel, electrophoretic black
Packing: 15 pairs / carton. Minimum order one carton per order number. 7 order numbers listed under Variants.
| Type | Ball-bearing slides |
|---|---|
| Feature 1 | Steel 0.8 × 1.0 × 1.0 mm |
| Feature 2 | 45 mm wide, 25 kg per pair |
| Feature 3 | 200–500 mm (8"–20") |
| Feature 4 | Cold-rolled steel, electrophoretic black |
| Extension | [to confirm] |
| Lengths | 7007 2008 – 2020: 200 to 500 mm |
| Load capacity | 45 mm wide, 25 kg per pair |
| Width | 45 mm wide |
| Steel thickness | Steel 0.8 × 1.0 × 1.0 mm |
| Closing | [to confirm] |
| Mounting | [to confirm] |
Sources: dealer price list 2026-04. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 7007 2008 | 8"200mm long |
| 7007 2010 | 10"250mm long |
| 7007 2012 | 12"300mm long |
| 7007 2014 | 14"350mm long |
| 7007 2016 | 16"400mm long |
| 7007 2018 | 18"450mm long |
| 7007 2020 | 20"500mm long |
| Packing | 15 pairs / carton |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
