Cabinet hinges · Stainless steel hinges

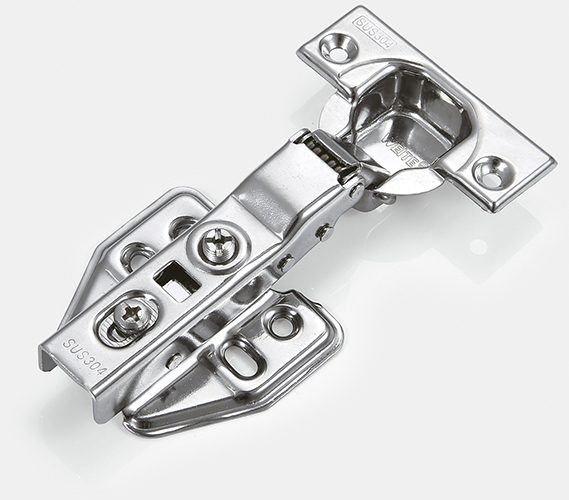

SUS304 stainless steel hinge, heavy-duty, washable
Model 6919
- Feature 1SUS304 stainless steel
- Feature 2Washable, for wet rooms
- Feature 3105° opening
- Feature 415–22 mm doors
- Feature 53D adjustment ±2 / ±2 / ±4 mm
Packing: 200 pcs / carton. Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Stainless steel hinges |
|---|---|
| Door thickness | 15–22 mm |
| Opening angle | 105° |
| Cup diameter / drilling | 35 mm |
| Cup depth | 11.5 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +4 / −4 mm |
| Spring | [to confirm] |
| Closing | Soft close |
| Mounting | Fixed mount (screw-on) |
| Material | SUS304 stainless steel, bright finish |
| Finish | Bright (no plating) |
| Included | Screws |
Sources: dealer price list 2026-04 and WEITE product catalogue. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 6919 0607 | inset |
| 6919 0608 | half overlay |
| 6919 0609 | full overlay |
| Packing | 200 pcs / carton |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
