Cabinet hinges · Soft-close cup hinges

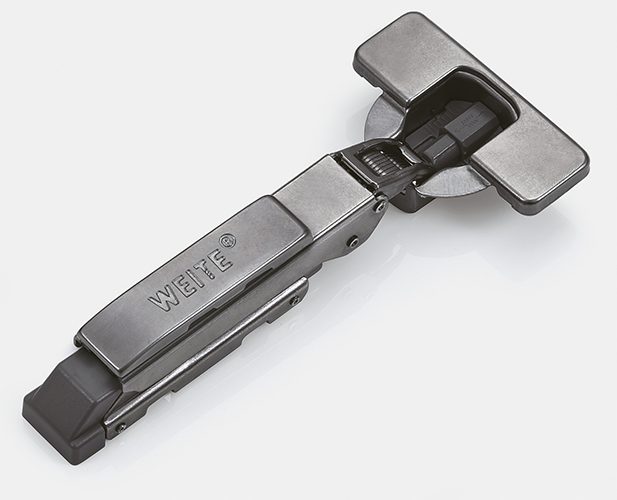

Titanium-finish external-damper hinge, 2-stage
Model 6921Thick & thin doors
- Feature 1105° opening
- Feature 216–28 mm doors
- Feature 3External damper
- Feature 43D adjustment ±2 / ±2 / ±4 mm
- Feature 5Titanium finish
Packing: 100 pcs / inner box · 2 inner boxes / carton (200 pcs). Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Soft-close cup hinges |
|---|---|
| Door thickness | 16–28 mm |
| Opening angle | 105° |
| Cup diameter / drilling | 35 mm |
| Cup depth | 12 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +4 / −4 mm |
| Spring | 2-stage spring |
| Closing | Detachable external damper, small-angle soft close |
| Mounting | Fixed mount (screw-on) |
| Material | Cold-rolled steel |
| Finish | Titanium finish (titanium-alloy plating) |
| Included | Screws, arm cover |
Sources: dealer price list 2026-04 and WEITE product catalogue. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 6921 0307 | inset |
| 6921 0308 | half overlay |
| 6921 0309 | full overlay |
| Packing | 100 pcs / inner box · 2 inner boxes / carton (200 pcs) |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
