Cabinet hinges · Soft-close cup hinges

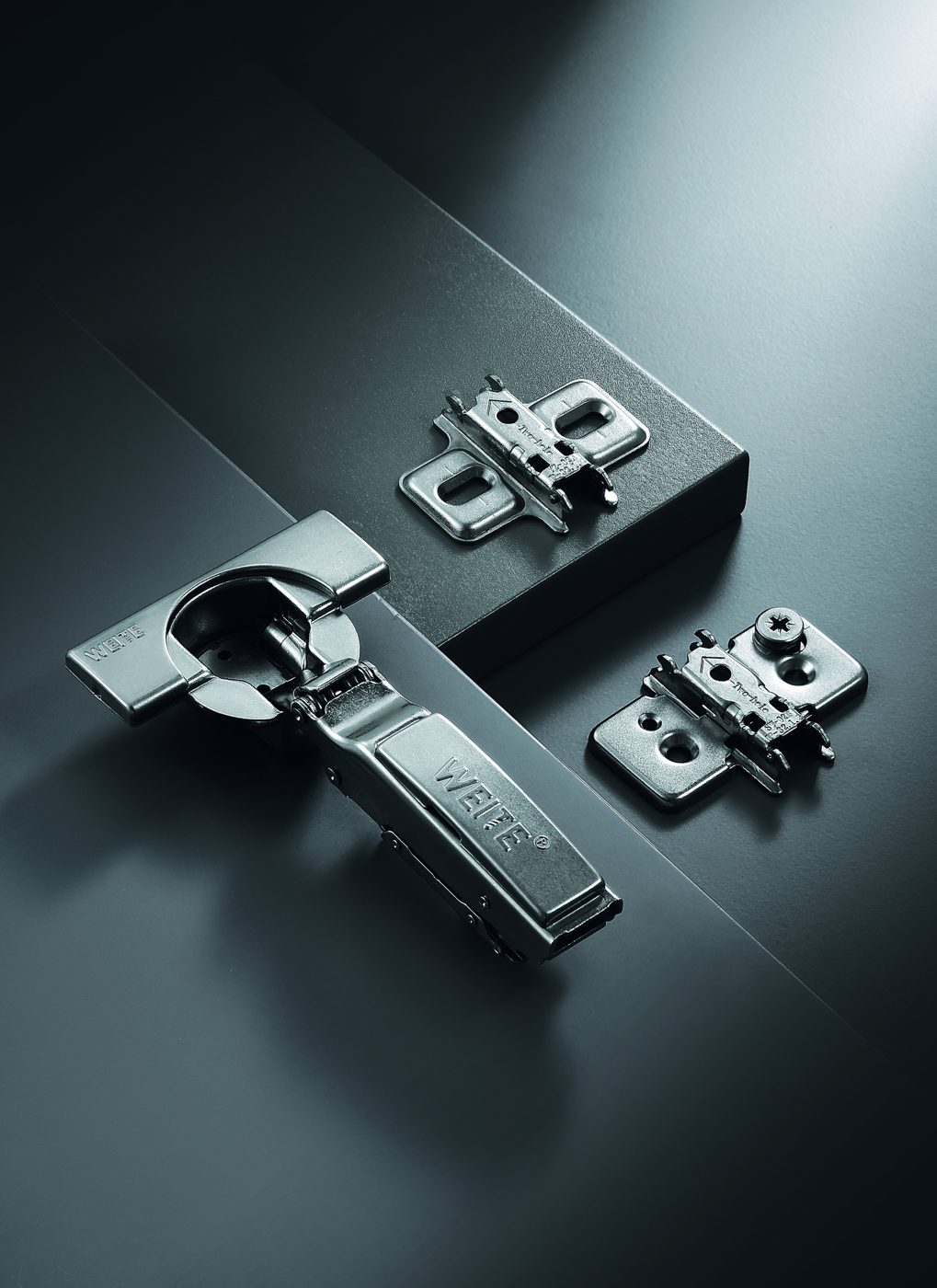

Quick-mount cup-damper hinge, 3-stage, titanium finish
Model 6931New generationClip-on
- Clip-on, tool-free
- 16–25 mm doors
- 96 h neutral salt spray, grade 9
- 50,000 cycles
- 3 base options
- Titanium finish
Packing: 100 pcs / inner box · 2 inner boxes / carton (200 pcs). Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Soft-close cup hinges |
|---|---|
| Door thickness | 16–25 mm |
| Opening angle | 100° |
| Cup diameter / drilling | 35 mm |
| Cup depth | 14 mm |
| Overlay adjustment (side) | Worm-gear multi-axis |
| Height adjustment | +3 / −3 mm |
| Depth adjustment | +3 / −3 mm |
| Spring | 3-stage spring |
| Closing | Cup-integrated damper, small-angle soft close |
| Mounting | Clip-on (tool-free), three base options: cross 2-hole, cross 3D, straight 3D |
| Material | Cold-rolled steel |
| Finish | Titanium finish (titanium-alloy plating) |
| Included | Screws, cup cover |
50,000 open-close cycles. Dimensions not yet in the catalogue.
Sources: dealer price list 2026-04.
| Order number | Variant / size / colour |
|---|---|
| 6931 0307 | inset |
| 6931 0308 | half overlay |
| 6931 0309 | full overlay |
| Packing | 100 pcs / inner box · 2 inner boxes / carton (200 pcs) |
|---|---|
| Minimum order | One carton per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
Inside the 6931.
Every part of the clip-on cup-damper hinge and what it does.
