Cabinet hinges · Soft-close cup hinges

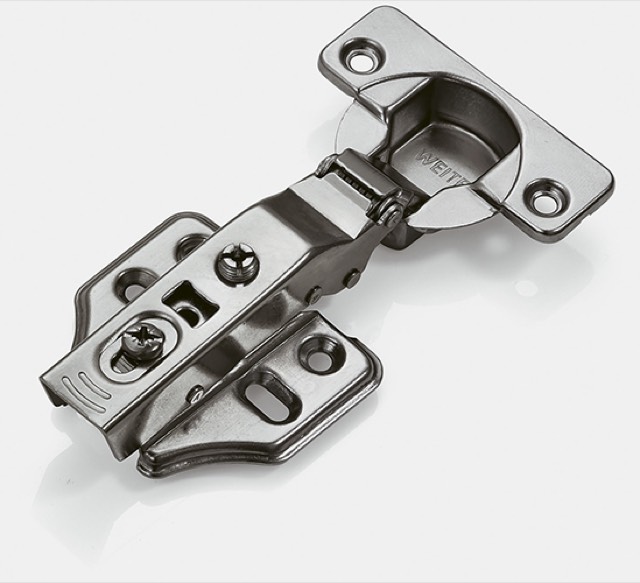

Titanium-finish 3-stage soft-close hinge
Model 6913Best sellerThick & thin doors
- Opening angle105°
- Door thickness16–28 mm
- CupØ35 mm × 12 mm deep
- Adjustment±2 / ±2 / ±4 mm
- ClosingHydraulic soft close, 3-stage
- FinishTitanium finish on cold-rolled steel
Order numbers 6913 0309 / 0308 / 0307 for full overlay, half overlay and inset. 2 pcs per bag with screws and arm cover; 200 pcs per carton; minimum one carton.
| Door thickness | 16–28 mm (thick and thin doors) |
|---|---|
| Opening angle | 105° |
| Cup diameter | 35 mm |
| Cup depth | 12 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +4 / −4 mm |
| Spring | 3-stage: hold-open, free-swing, small-angle soft close |
| Damper | Hydraulic, small-angle soft close |
| Mounting | Fixed mount, screw-on arm |
| Material | Cold-rolled steel |
| Finish | Titanium finish (titanium-alloy plating) |
| Salt spray | 72 h neutral salt spray (titanium-finish series, WEITE testing centre) |
| Cycle test | 60,000+ open-close cycles (soft-close series) |
| Weight | 93 g per hinge |
| Included | Screws, arm cover |
| Drilling pattern | [to confirm] cup Ø35 mm; screw-hole spacing and cup distance K |
| Min. door width | [to confirm] |
| Mounting plate options | [to confirm] |
| Nickel version | [to confirm] the catalogue lists a nickel-plated 6913 alongside the titanium finish |
Source: WEITE product catalogue p. 007 and dealer price list 2026-04. Rows marked [to confirm] are being completed by WEITE before launch.
| Order number | Overlay | Arm |
|---|---|---|
| 6913 0309 | Full overlay | straight arm |
| 6913 0308 | Half overlay | half-crank arm |
| 6913 0307 | Inset | full-crank arm |
Same hinge, same price band: only the arm crank changes.
| Bag | 2 pcs per bag, with screws and arm cover |
|---|---|
| Inner box | 100 pcs |
| Carton | 2 inner boxes · 200 pcs |
| Net weight per carton | about 18.6 kg (calculated from 93 g per hinge) |
| Carton size | [to confirm] |
| Minimum order | 1 carton (200 pcs) per order number |
| Lead time | [to confirm] stock and production lead times |
| Private label | [to confirm] arm stamping, arm cover, bag and carton print |
| Specification sheet (PDF) | Generated from this page's data at launch. |
|---|---|
| Installation drawing | Catalogue drawing: 105° opening, 72 mm arm reference, H and T marked. [to add as image] |
| Test reports | [to confirm] salt spray and cycle test reports from the WEITE testing centre |
