Cabinet hinges · Soft-close cup hinges

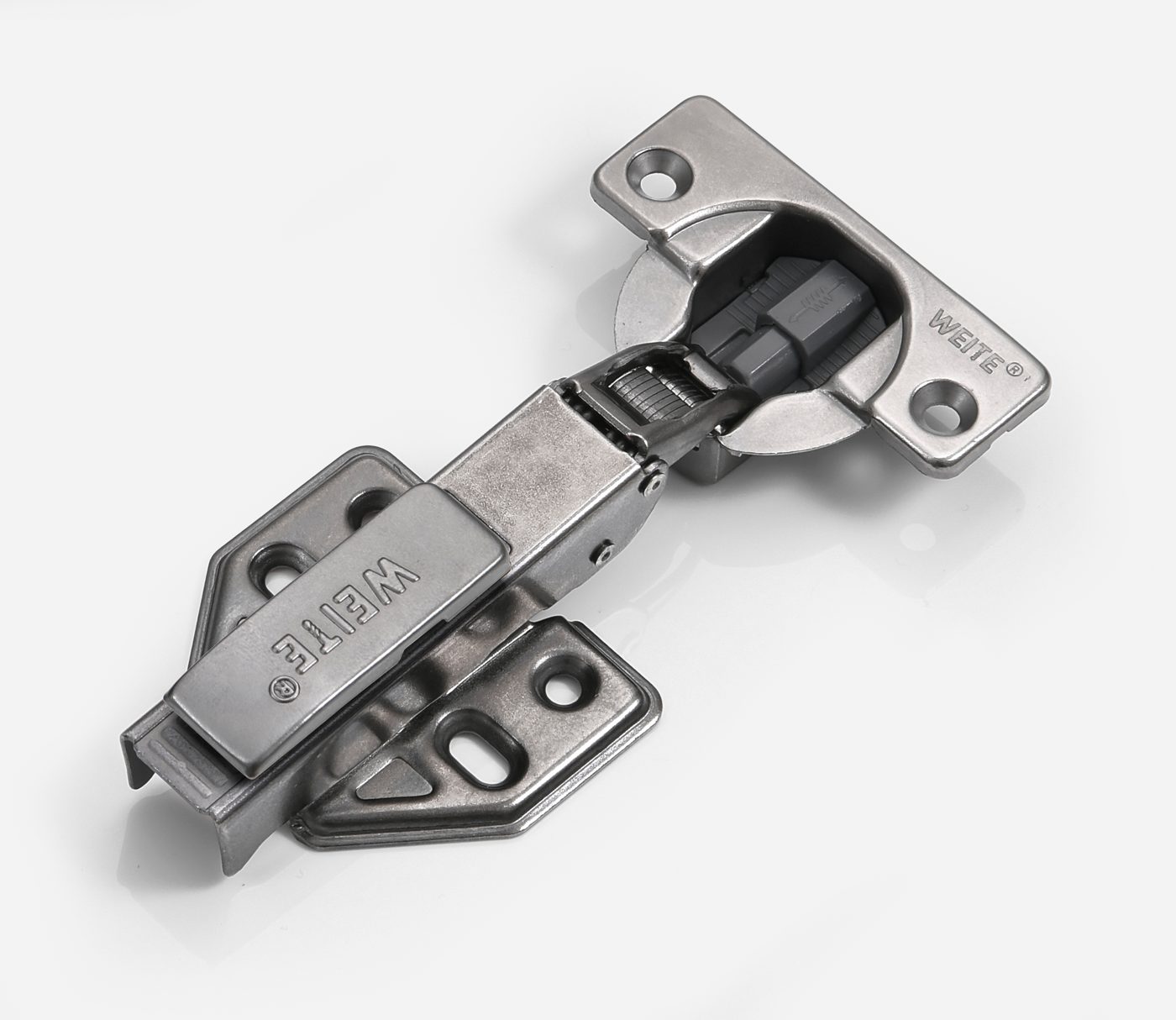

Titanium-finish cup-damper hinge, 2-stage
Model 6914Thick & thin doors
- 105° opening
- 16–28 mm doors
- Cup damper
- 3D adjustment ±2 / ±2 / ±4 mm
- Titanium finish
Packing: 100 pcs / inner box · 2 inner boxes / carton (200 pcs). Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Soft-close cup hinges |
|---|---|
| Door thickness | 16–28 mm |
| Opening angle | 105° |
| Cup diameter / drilling | 35 mm |
| Cup depth | 12 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +4 / −4 mm |
| Spring | 2-stage spring |
| Closing | Damper in the cup, small-angle soft close |
| Mounting | Fixed mount (screw-on) |
| Material | Cold-rolled steel |
| Finish | Titanium finish (titanium-alloy plating) |
| Included | Screws, arm cover |
| Side panel thickness | 16–22 mm |
Sources: dealer price list 2026-04 and WEITE product catalogue.
| Order number | Variant / size / colour |
|---|---|
| 6914 0307 | inset |
| 6914 0308 | half overlay |
| 6914 0309 | full overlay |
| Packing | 100 pcs / inner box · 2 inner boxes / carton (200 pcs) |
|---|---|
| Minimum order | One carton per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
