Push-to-open & door openers · Push latches

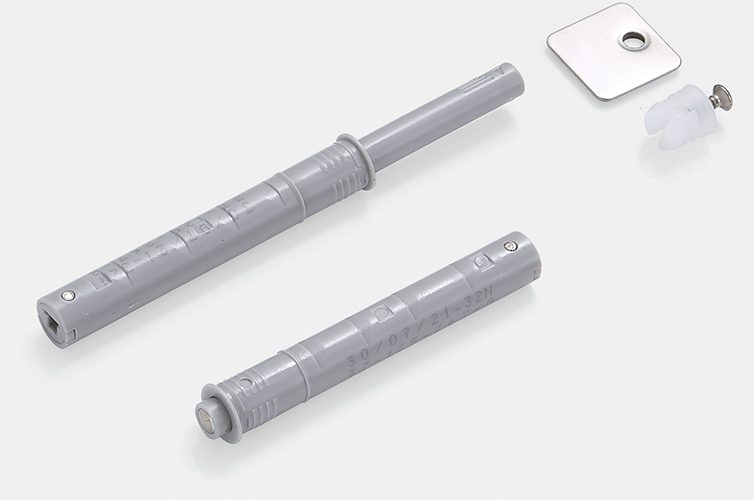

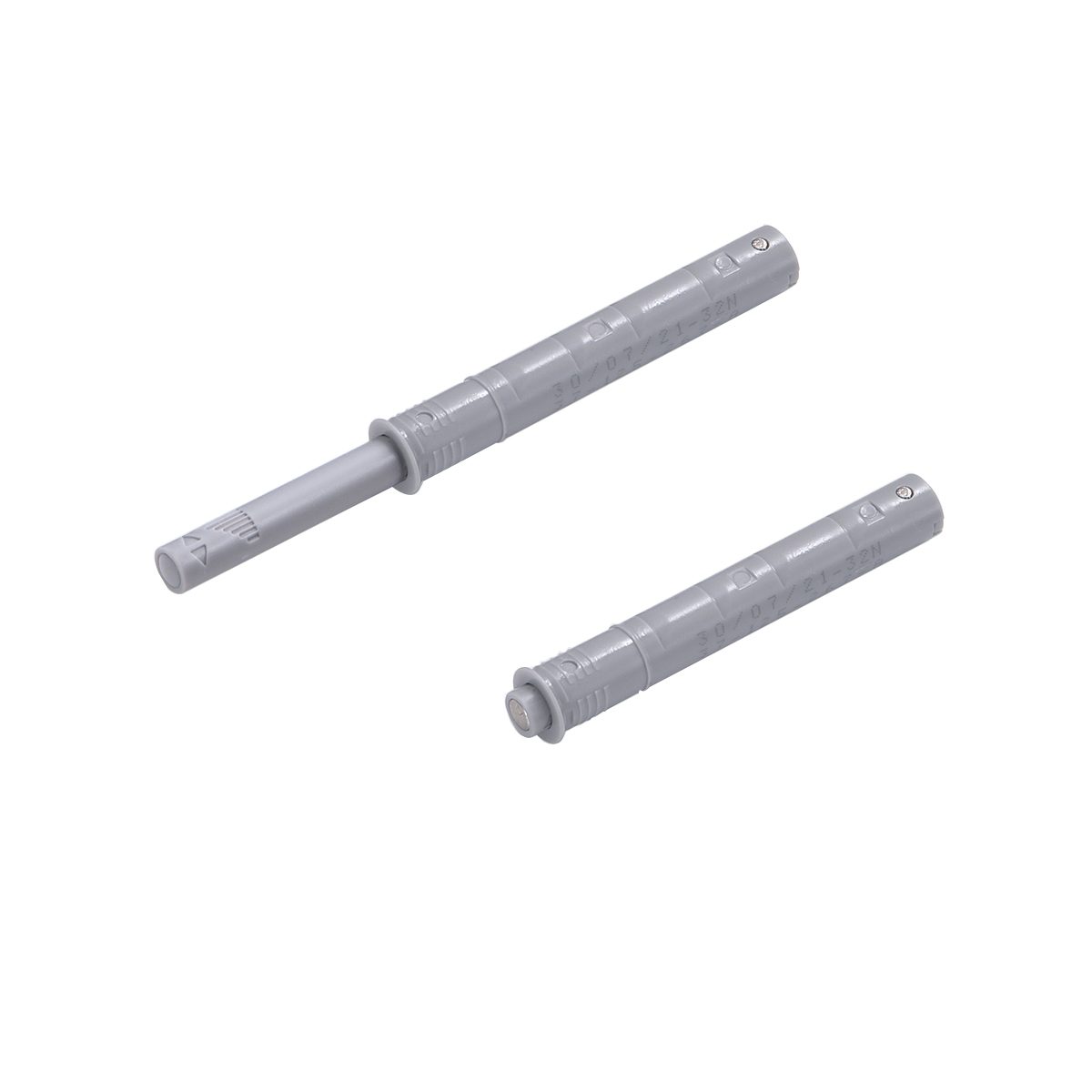

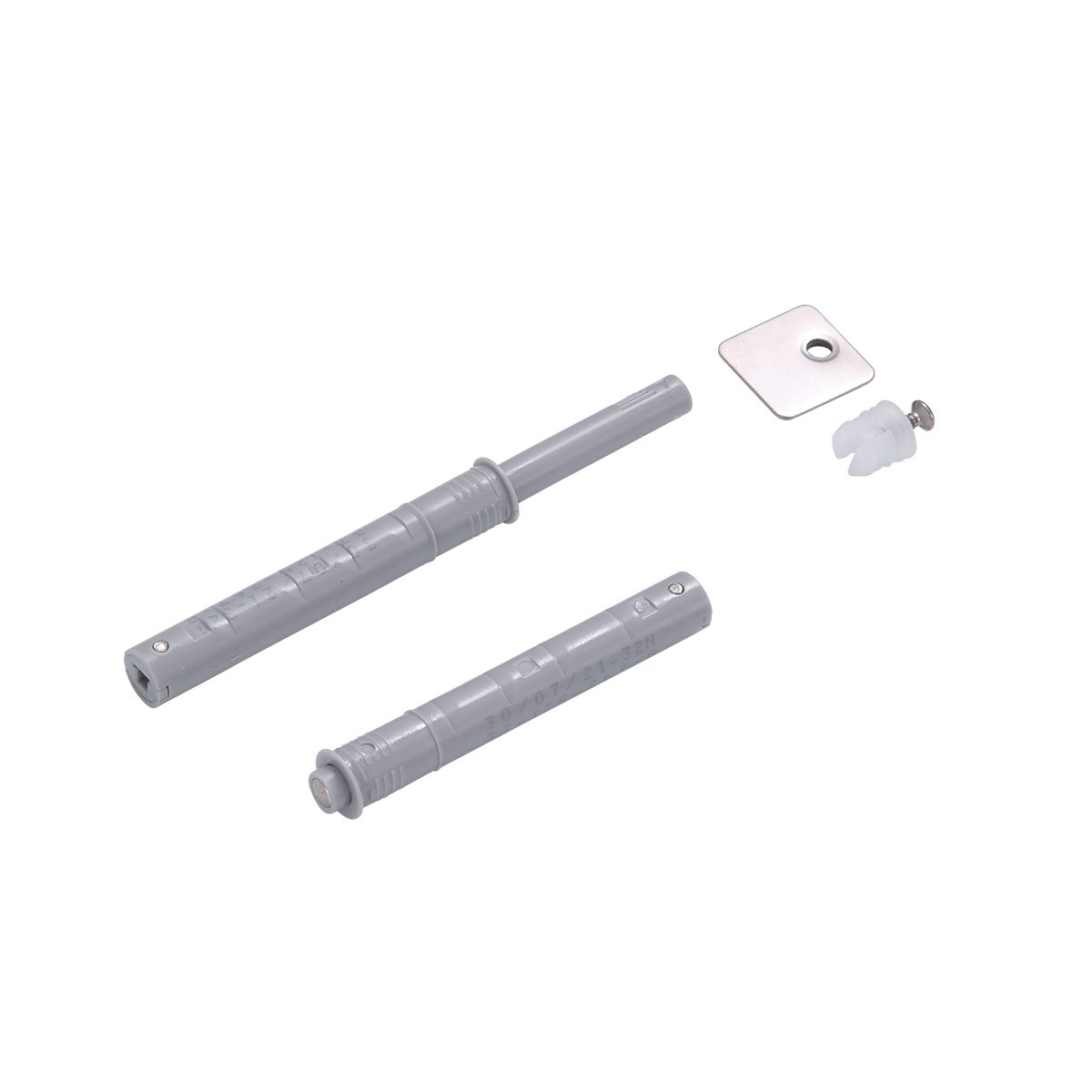

Recessed push latch, magnetic or rubber head
Model 7542
- Feature 1Hidden in a Ø10 × 71 mm bore
- Feature 230 N, 3800 GS magnet
- Feature 31.6 mm trigger distance
- Feature 4Depth adjustment +6 mm
Packing: 1000 pcs / carton. Minimum order one carton per order number. 2 order numbers listed under Variants.
| Type | Push latches |
|---|---|
| Feature 1 | Hidden in a Ø10 × 71 mm bore |
| Feature 2 | 30 N, 3800 GS magnet |
| Feature 3 | 1.6 mm trigger distance |
| Feature 4 | Depth adjustment +6 mm |
| Force (N) | 30 N |
| Stroke (mm) | [to confirm] |
| Adjustment | [to confirm] |
| Head type | [to confirm] |
| Compatible hinge | [to confirm] |
Sources: dealer price list 2026-04. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 7542 01 | light grey70-106mm |
| 7542 02 | light grey-70-106mm |
| Packing | 1000 pcs / carton |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
Related models.
7530Heavy duty
Heavy-duty push latch with positioning, magnetic or rubber head
- 40 N spring force
- 100,000 cycles tested
View details ›
7427Best seller
Push latch, magnetic, 3800 GS
- 30 N spring force
- Triggers with a 1.6 mm door gap
View details ›
7556
Quick-mount push latch, magnetic or rubber head
- 35 N spring force
- Slide-rail quick mounting, tool-free
View details ›
7022
In-line push latch, rubber head
- 30 N, 35 mm stroke
- 1.6 mm trigger distance
View details ›
