Cabinet hinges · Special-angle hinges

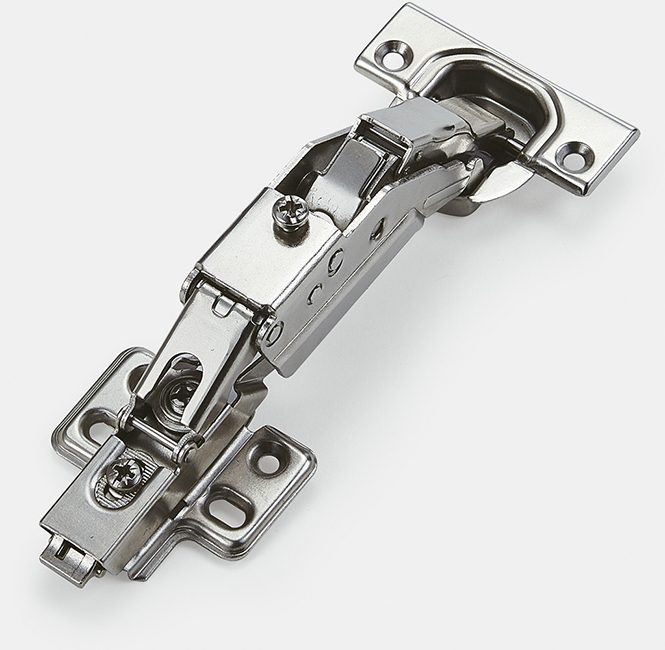

125° hinge for 36 mm thick and profile doors, clip-on
Model 6915
- Feature 1125° opening
- Feature 216–36 mm doors
- Feature 3Ø35 mm cup, 10 mm deep
- Feature 43D adjustment ±2 / ±2 / ±3 mm
- Feature 5Nickel
Packing: Single bag · 100 pcs / carton. Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Special-angle hinges |
|---|---|
| Door thickness | 16–36 mm |
| Opening angle | 125° |
| Cup diameter / drilling | 35 mm |
| Cup depth | 10 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +3 / −3 mm |
| Spring | [to confirm] |
| Closing | Soft close |
| Mounting | Clip-on |
| Material | Cold-rolled steel |
| Finish | Nickel plating |
| Included | Screws |
Sources: dealer price list 2026-04 and WEITE product catalogue. Rows marked [to confirm] are completed by WEITE before launch.
| Order number | Variant / size / colour |
|---|---|
| 6915 0107 | inset |
| 6915 0108 | half overlay |
| 6915 0109 | full overlay |
| Packing | Single bag · 100 pcs / carton |
|---|---|
| Minimum order | One carton per order number |
| Carton size and weight | [to confirm] |
| Lead time | [to confirm] |
