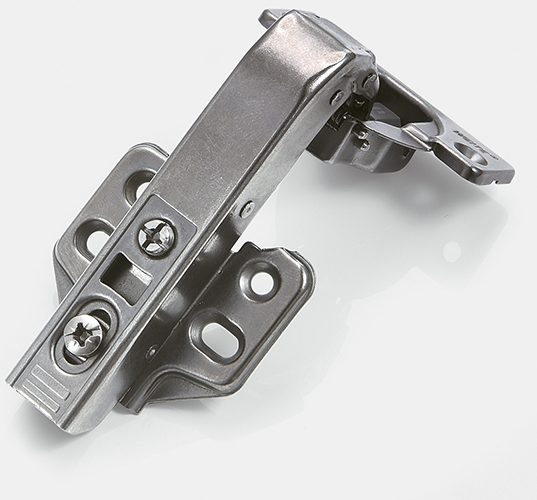

90° titanium-finish external-damper hinge, 2-stage

Model 6923

Packing: 100 pcs / inner box · 2 inner boxes / carton (200 pcs). Minimum order one carton per order number. 1 order number listed under Variants.

Type	Special-angle hinges
Door thickness	16–28 mm
Opening angle	90°
Cup diameter / drilling	35 mm
Cup depth	12 mm
Overlay adjustment (side)	+2 / −2 mm
Height adjustment	+2 / −2 mm
Depth adjustment	+4 / −4 mm
Spring	2-stage spring
Closing	External damper, small-angle soft close
Mounting	Fixed mount (screw-on)
Material	Cold-rolled steel
Finish	Titanium finish (titanium-alloy plating)
Included	Screws, arm cover

Price list: passes 96 h neutral salt spray.

Sources: dealer price list 2026-04 and WEITE product catalogue. Rows marked [to confirm] are completed by WEITE before launch.

Order number	Variant / size / colour
6923 0390	90°/thick & thin doors

Packing	100 pcs / inner box · 2 inner boxes / carton (200 pcs)
Minimum order	One carton per order number
Carton size and weight	[to confirm]
Lead time	[to confirm]

Related models.
