Cabinet hinges · Special-angle hinges

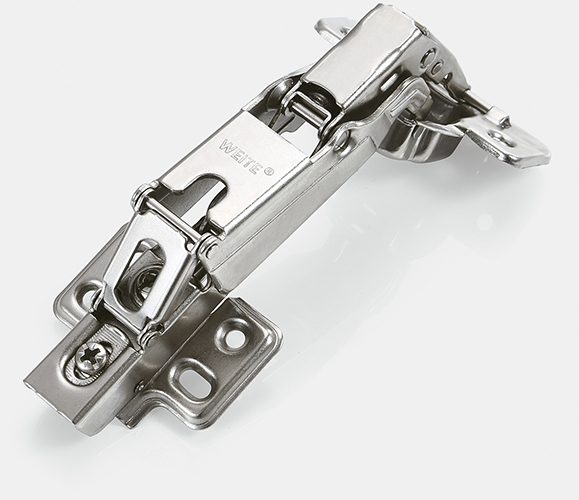

165° wide-angle soft-close hinge
Model 6906
- 165° opening
- 15–25 mm doors
- Ø35 mm cup, 11.5 mm deep
- 3D adjustment ±2 / ±2 / ±3 mm
- Nickel
Packing: 100 pcs / carton. Minimum order one carton per order number. 3 order numbers listed under Variants.
| Type | Special-angle hinges |
|---|---|
| Door thickness | 15–25 mm |
| Opening angle | 165° |
| Cup diameter / drilling | 35 mm |
| Cup depth | 11.5 mm |
| Overlay adjustment (side) | +2 / −2 mm |
| Height adjustment | +2 / −2 mm |
| Depth adjustment | +3 / −3 mm |
| Closing | Soft close |
| Mounting | Fixed mount (screw-on) |
| Material | Cold-rolled steel |
| Finish | Nickel plating |
| Included | Screws |
Sources: dealer price list 2026-04 and WEITE product catalogue.
| Order number | Variant / size / colour |
|---|---|
| 6906 0107 | inset |
| 6906 0108 | half overlay |
| 6906 0109 | full overlay |
| Packing | 100 pcs / carton |
|---|---|
| Minimum order | One carton per order number |
| Lead time | Stock items 7 to 15 days, made-to-order 25 to 35 days, counted from the deposit. |
