Lift-up supports and fittings.
Lift-up and flap stays for wall cabinets and ottoman beds, gas springs, connectors and cam locks for carcass assembly, shelf supports, floating-cabinet brackets, casters, hangers and drawer locks. The small parts that hold a cabinet together.
4 types. Pick by the cabinet.
Start with the cabinet; the type follows.
Lift-up & flap stays
Folding damped stays, free-stop stays, gas springs and the 7532 lift-up mechanism for wall cabinets.
Connectors & cam locks
Quick-fit dowel bolts, hidden connectors, cam locks in zinc alloy or manganese steel, and cover caps.
Shelf supports
Minimal 5 mm shelf pins in gunmetal and hidden supports for shelves and slatted panels.
Brackets, casters & locks
Floating-cabinet brackets, cable grommets, bed-storage casters, cabinet hangers, drawer locks and seat fittings.
All 35 models.
Order number = model + size or colour suffix. Cards marked [PHOTO TO ADD] are in the price list but have no studio photo yet. Model pages follow the 6913 template once the data rows are confirmed.
Lift-up & flap stays · 11 models
Folding damped stays, free-stop stays, gas springs and the 7532 lift-up mechanism for wall cabinets.
- 50–70 N
- Doors 150–300 mm high
- 50–70 N
- Soft opening, no noise
- Bi-fold doors, 7.1–8 kg
- Cabinet height 700–1000 mm
- Torque 1200–4000 kg·cm
- Doors 330–500 mm high, 600–1200 mm wide
- 70–120 N
- 50,000 cycles
- Stainless steel
- Hydraulic damping over the full travel
- 100 N
- Hydraulic damping
- 80 N
- Opens to 105°, stops at any angle
- 100 N
- Doors up to 3.2 kg
- 100 N
- Doors up to 3.2 kg
- 100 N
- Doors up to 3.2 kg
Connectors & cam locks · 9 models
Quick-fit dowel bolts, hidden connectors, cam locks in zinc alloy or manganese steel, and cover caps.
- 32, 35 or 40 mm bolt
- M6 thread, pre-assembled
- 32, 35 or 40 mm
- Self-tapping thread
- 40 × 31 mm
- Hex drive
- 8 × 33 mm
- Black plated
- Ø12 × 12 mm
- Zinc alloy, thick copper underplate
- Ø10 × 11.2 mm
- Zinc alloy, thick copper underplate
- Ø10 × 11.5 mm
- Manganese steel
- Ø12 × 12 mm
- Manganese steel
- Ø10 or Ø12
- Plastic
Shelf supports · 5 models
Minimal 5 mm shelf pins in gunmetal and hidden supports for shelves and slatted panels.
- Zinc alloy
- Ø5 mm pin
- Zinc alloy and nylon
- Ø12 mm bore, 12.5 mm shelf
- Zinc alloy and nylon
- Ø12 mm bore, 12 mm shelf
- Nylon and steel
- Ø8 × 28.5 mm
- Nylon, clear
- Ø10 × 20 mm
Brackets, casters & locks · 10 models
Floating-cabinet brackets, cable grommets, bed-storage casters, cabinet hangers, drawer locks and seat fittings.
- 230 × 102, 320 × 102 or 450 × 80 mm
- Steel, black
- Ø50 or Ø60 mm
- Bright chrome, brushed or black
- 25, 32, 38 or 50 mm
- Swivel or fixed
- Sold per pair
- Surface mount
- Sold per pair
- Concealed
- Short 19 × 22 mm cylinder
- Black or chrome
- Zinc alloy
- Panels 16–25 mm
- Damped both ways
- Sold as a set
- Sold as a set
- Single or double tier
- Black
Lift-up stays, connectors and the rest of the carcass.
This family collects the fittings that are not hinges or slides but that every cabinet still needs. Four groups.
Lift-up and flap stays

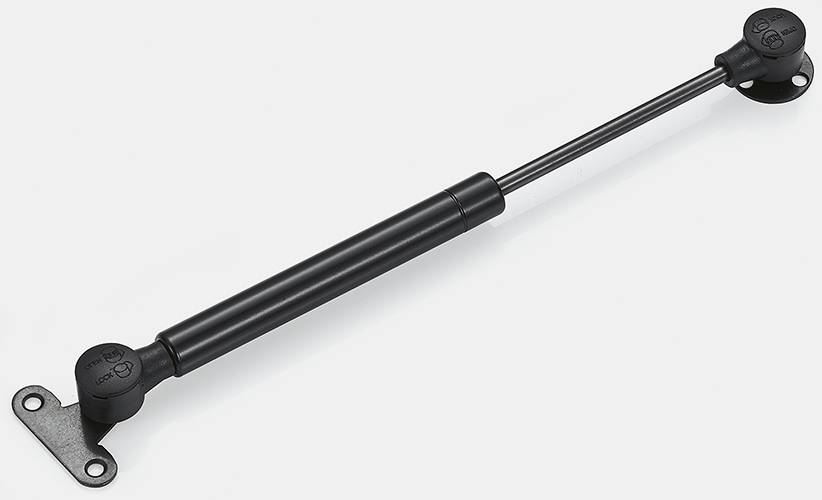

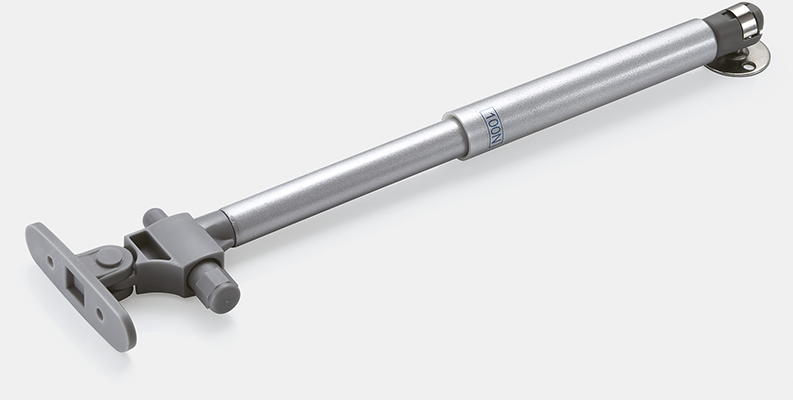

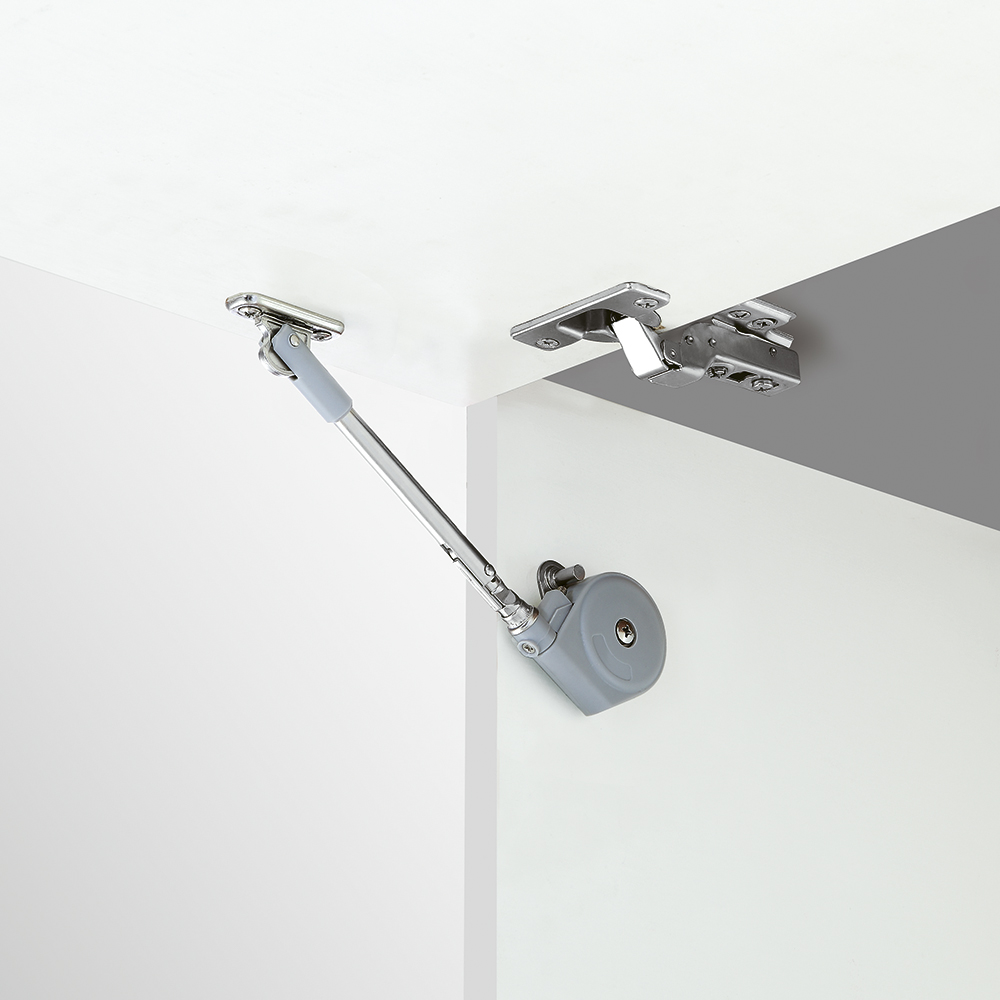

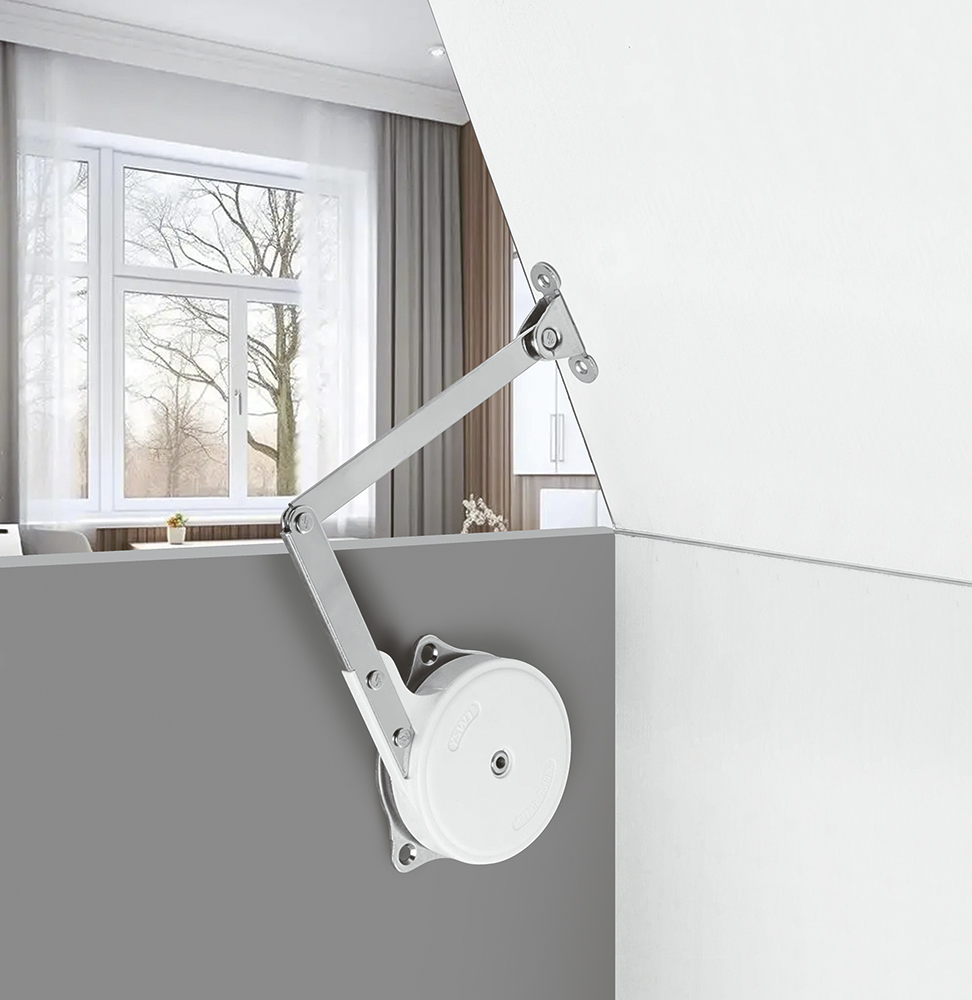

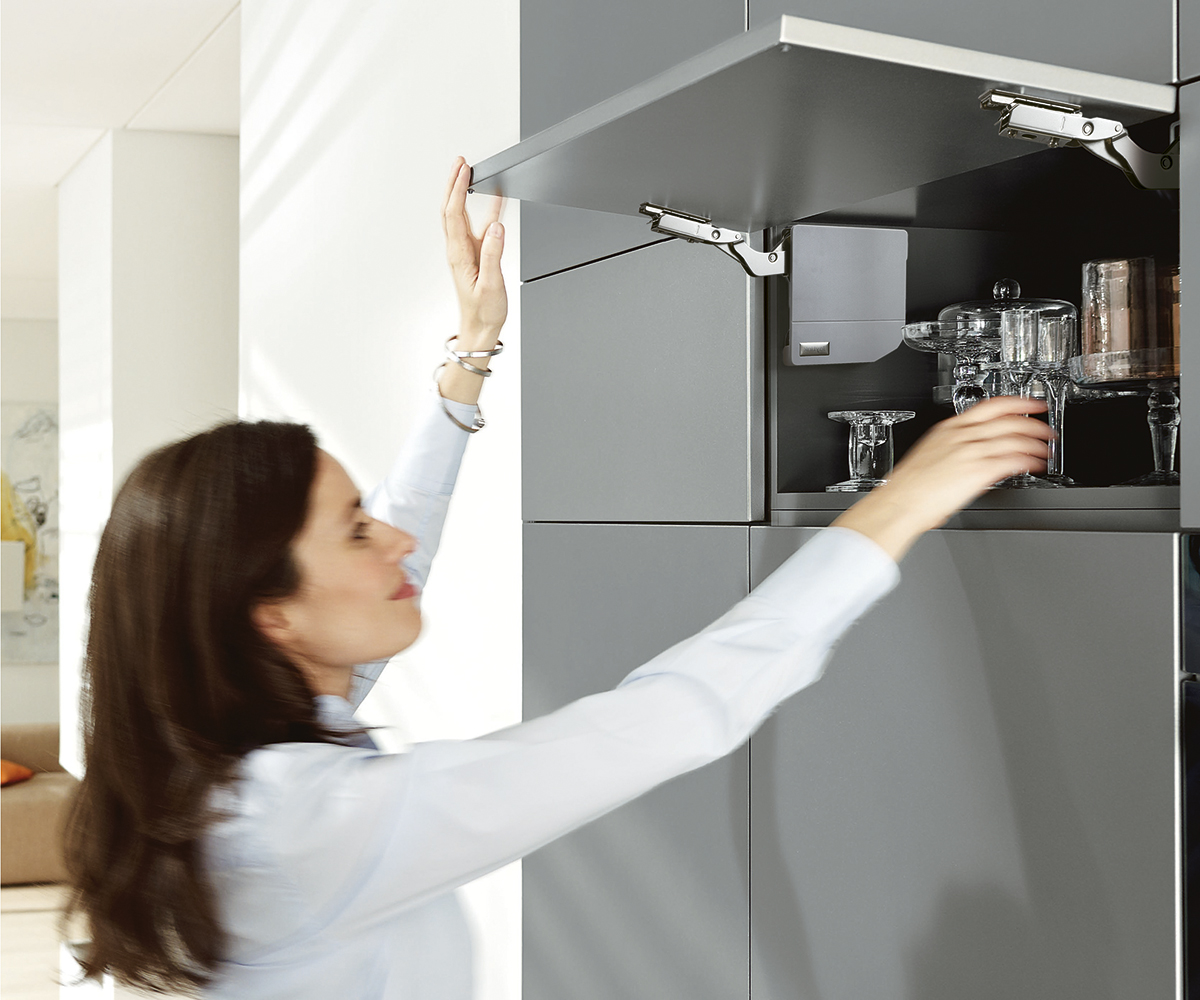

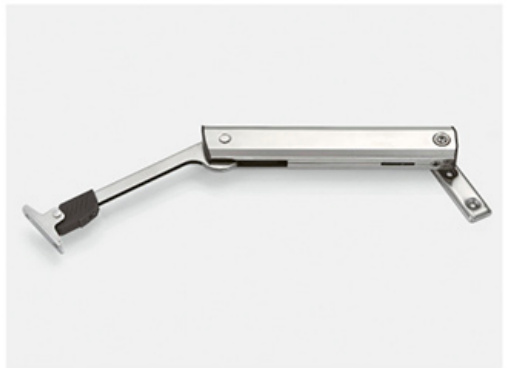

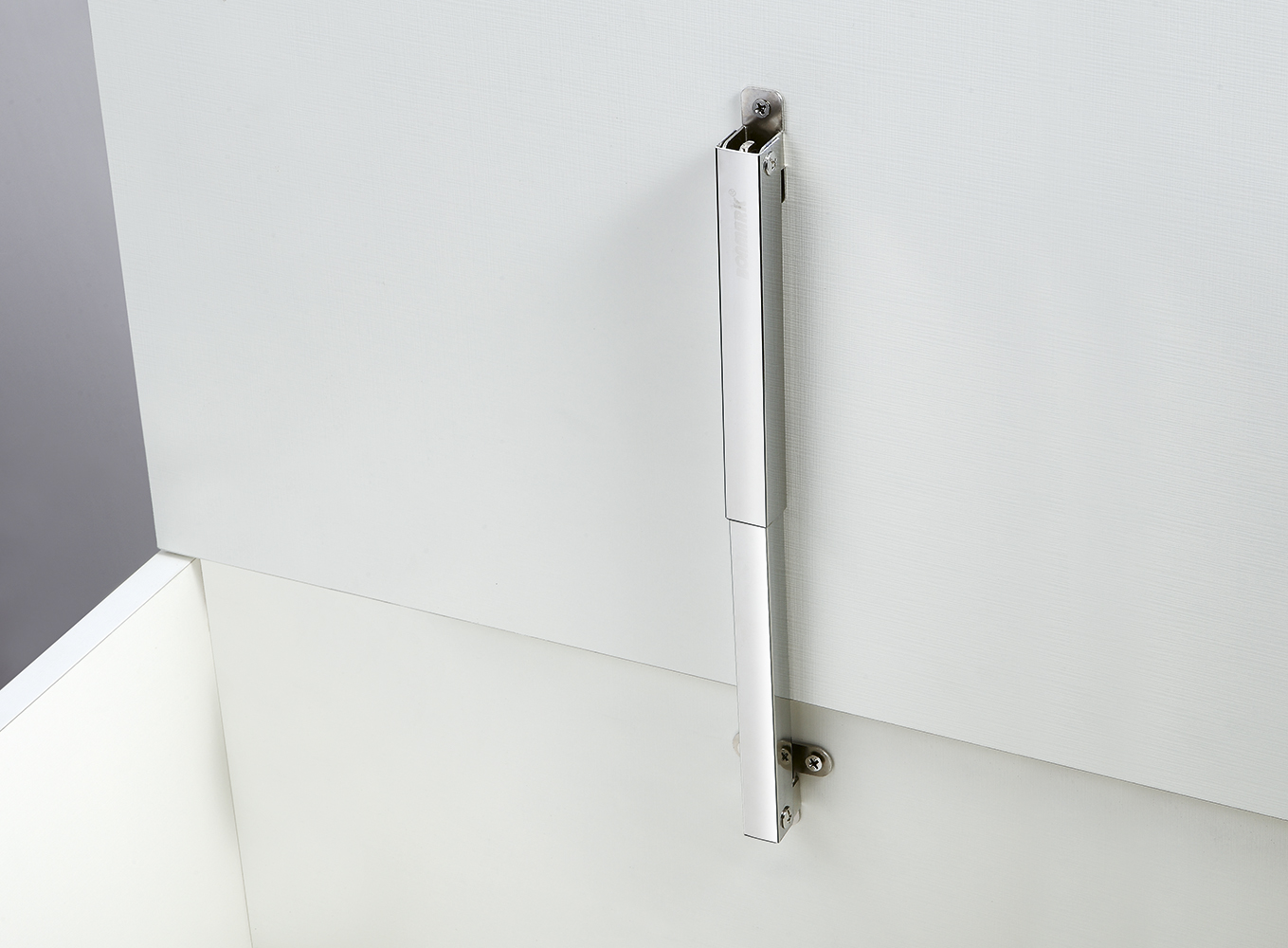

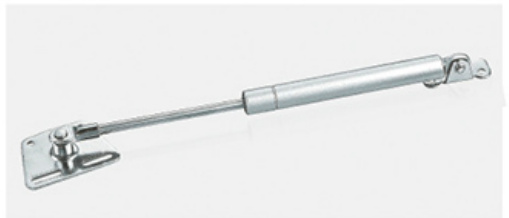

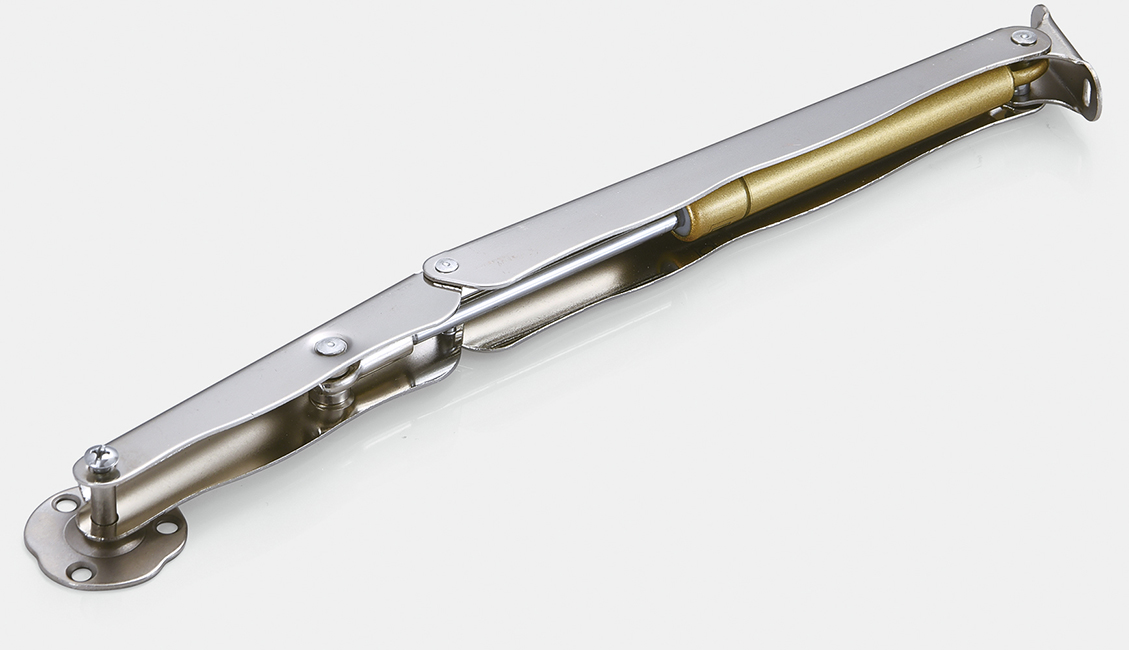

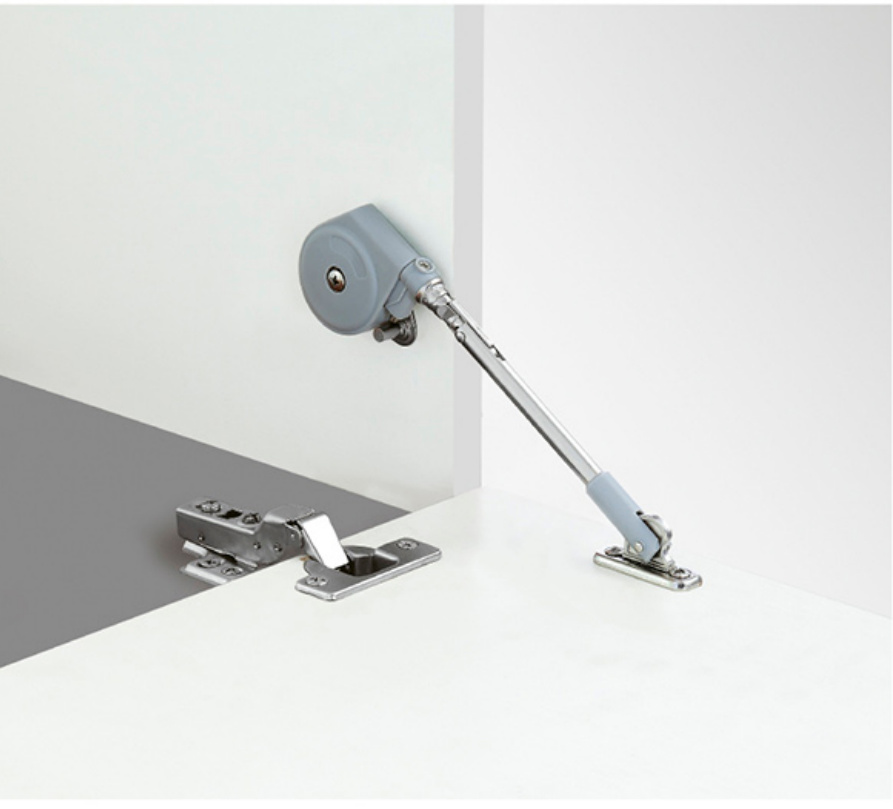

Wall cabinets with a door that opens upward need a stay. For small flaps 150 to 300 mm high, the folding damped stays 7534 (up-flap) and 7533 (down-flap) give 50 to 70 N and a soft landing. For full-size wall-cabinet doors 330 to 500 mm high the 7532 mechanism replaces the hinges entirely: it holds the door at any angle, closes softly from 25° and is chosen by torque, which is door height times door weight. The 7206 and 7525 are free-stop stays for lighter doors; the 7201 and 7203 are plain gas springs rated 80,000 cycles. Ottoman beds and storage benches use the 7453, 7416 and 7417, which damp a heavy lid over its whole travel.
Connectors and cam locks

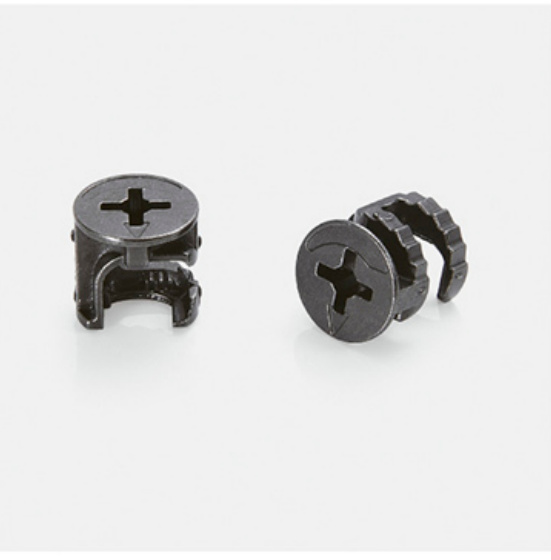

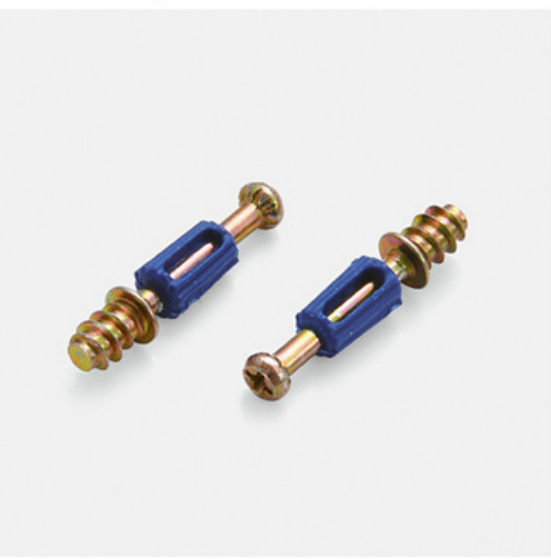

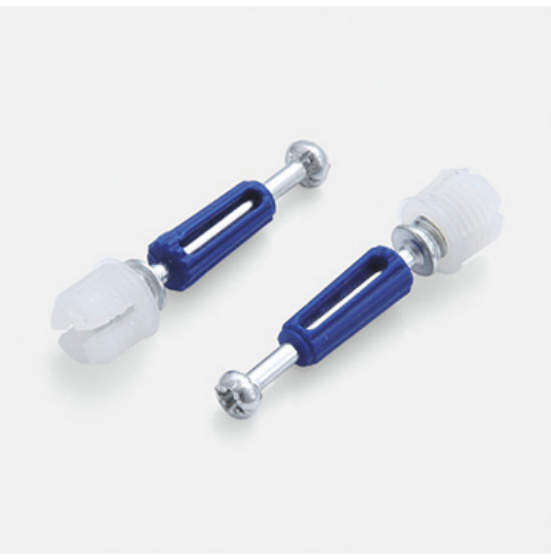

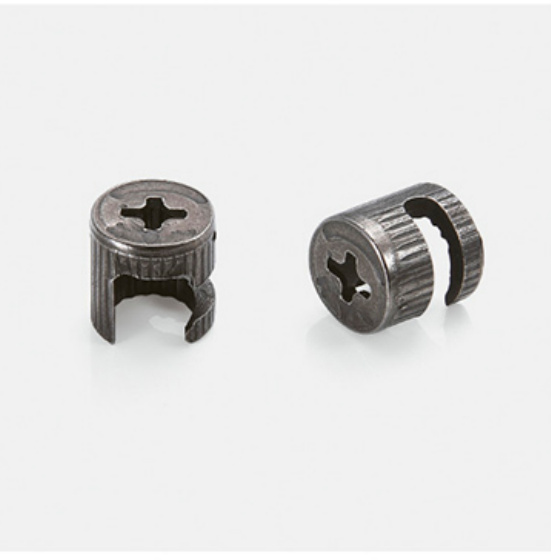

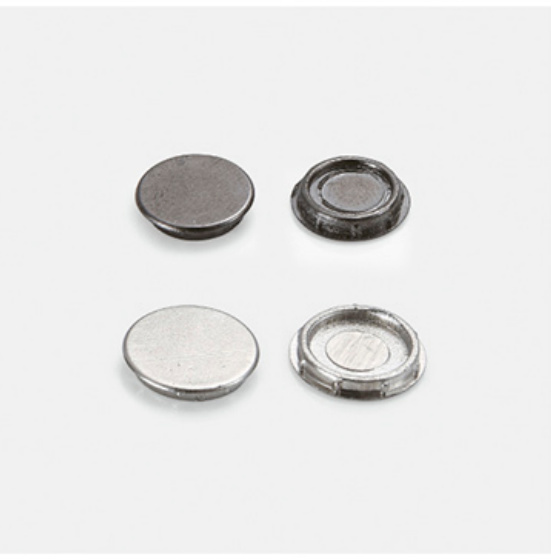

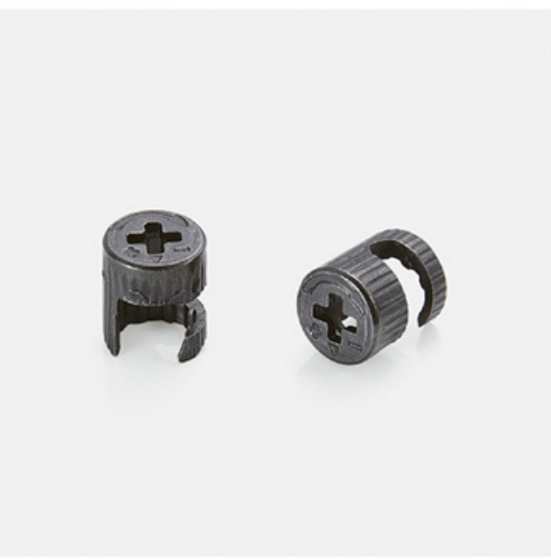

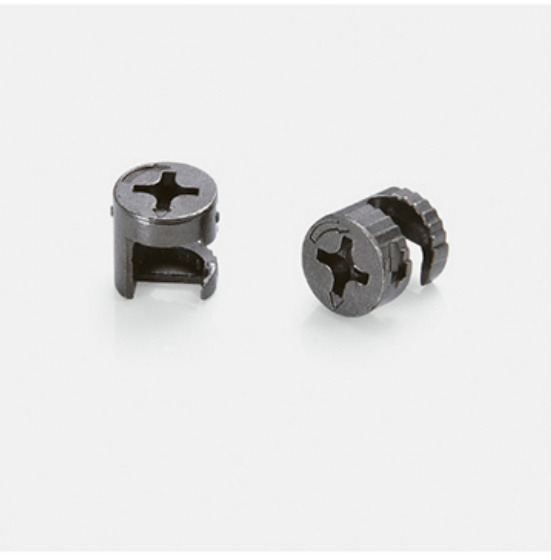

Flat-pack carcasses are held together by a bolt in one panel and a cam in the other. WEITE's 7039 and 7040 bolts come pre-assembled with a dowel or self-tapping thread in 32, 35 and 40 mm; the cams are zinc alloy (7037, 7036) or manganese steel (7033, 7035) in Ø10 and Ø12, gunmetal finish, with 7050 caps to cover them. Connectors pack 1000 to a bag.
Shelf supports

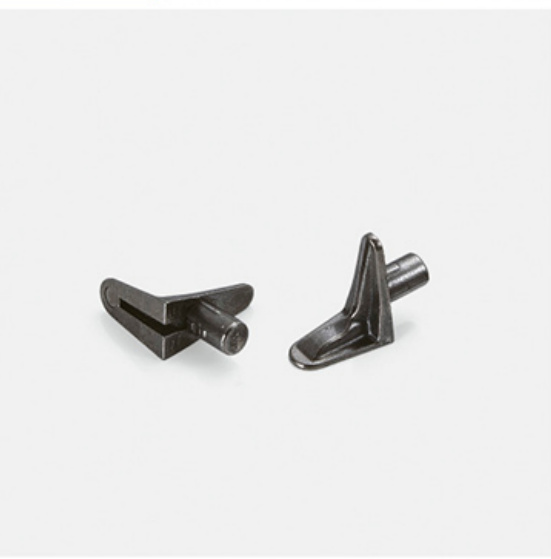

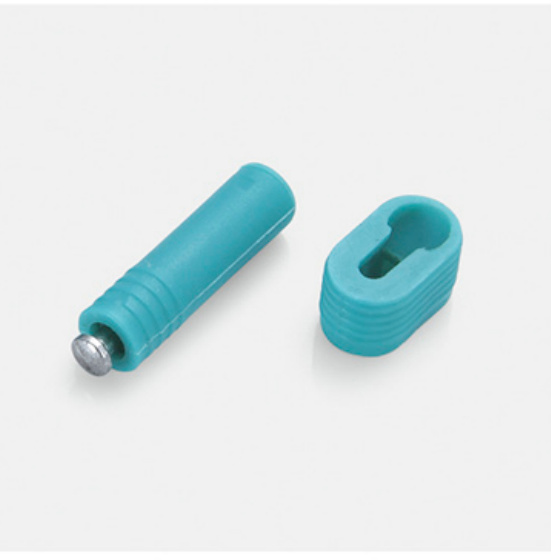

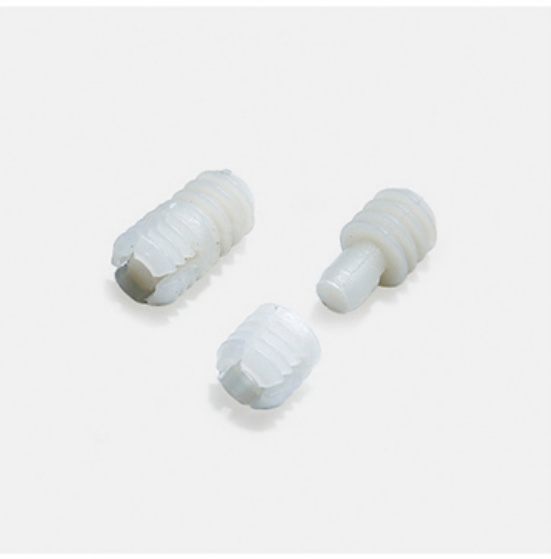

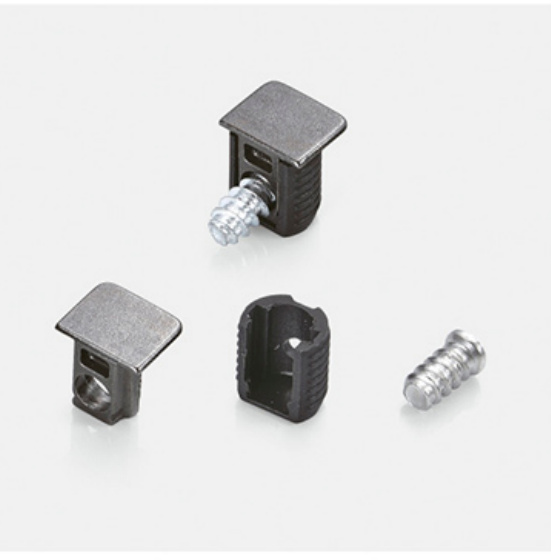

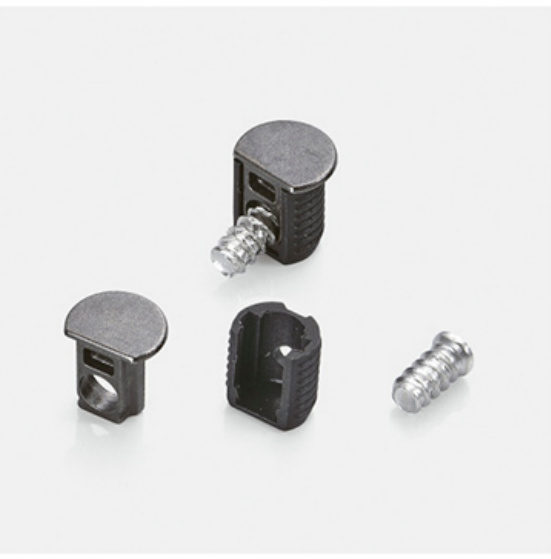

The 7047, 7048 and 7049 are minimal gunmetal pins for adjustable shelves; the 7046 and 7045 hide inside the shelf edge for a clean look on open shelving and slatted panels.
Brackets, casters and locks

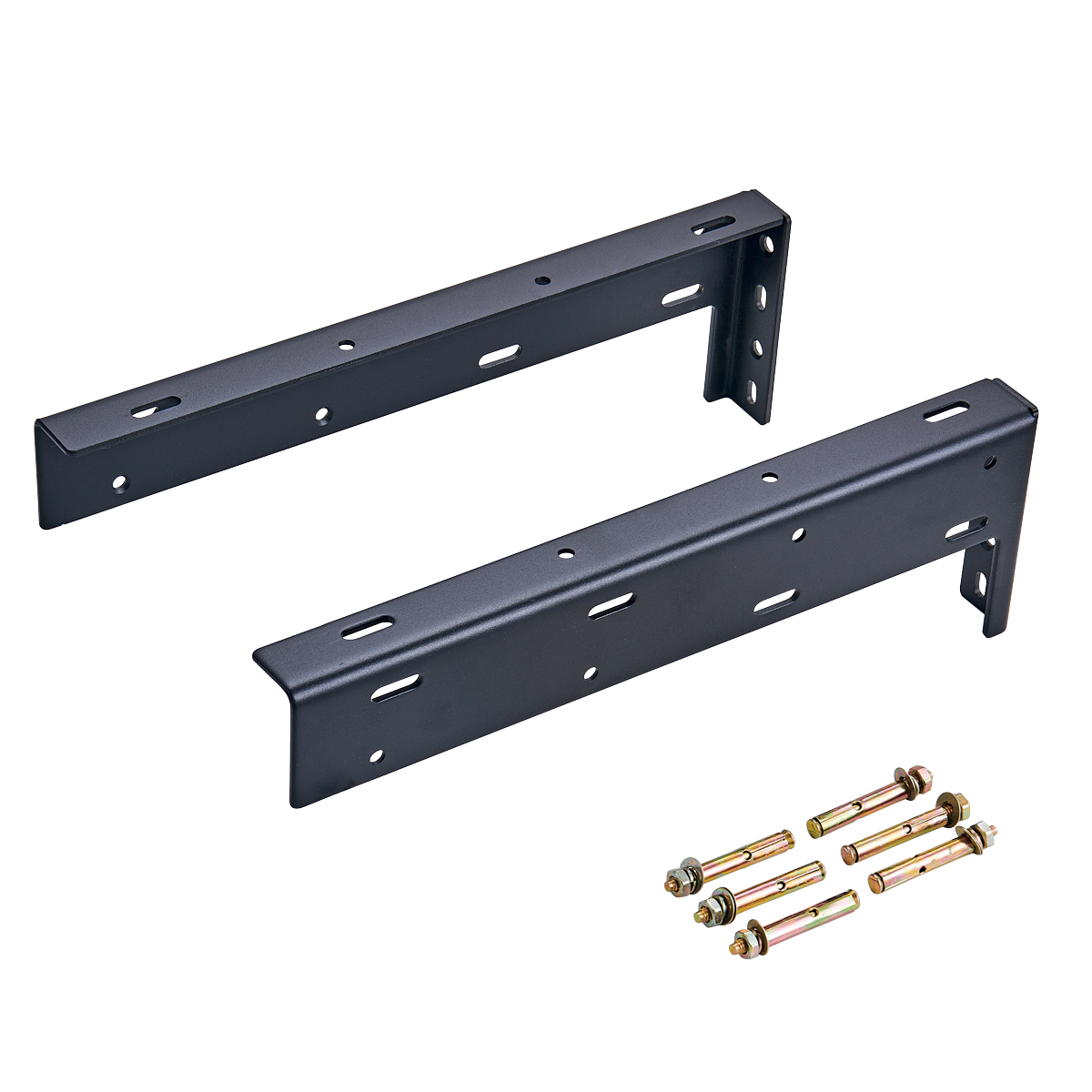

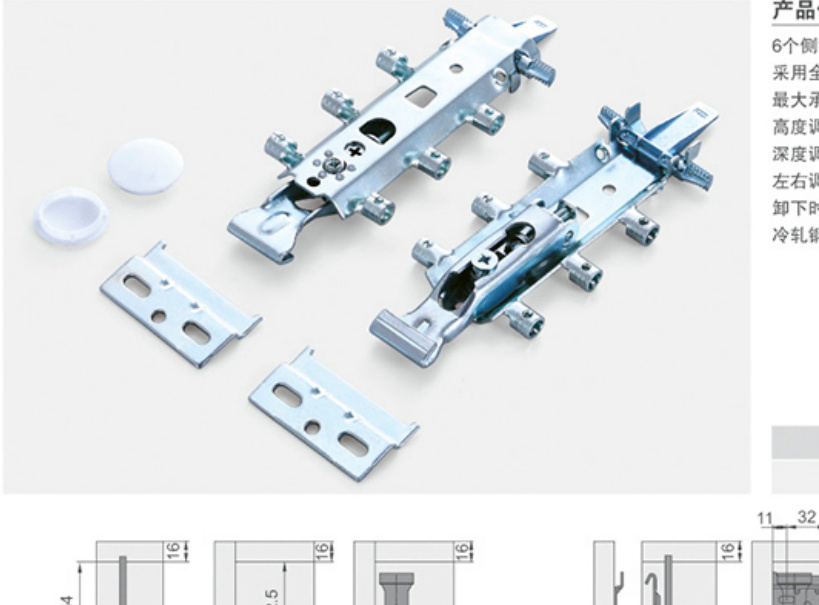

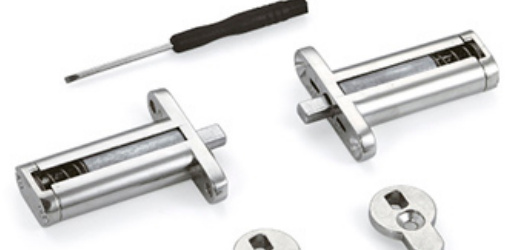

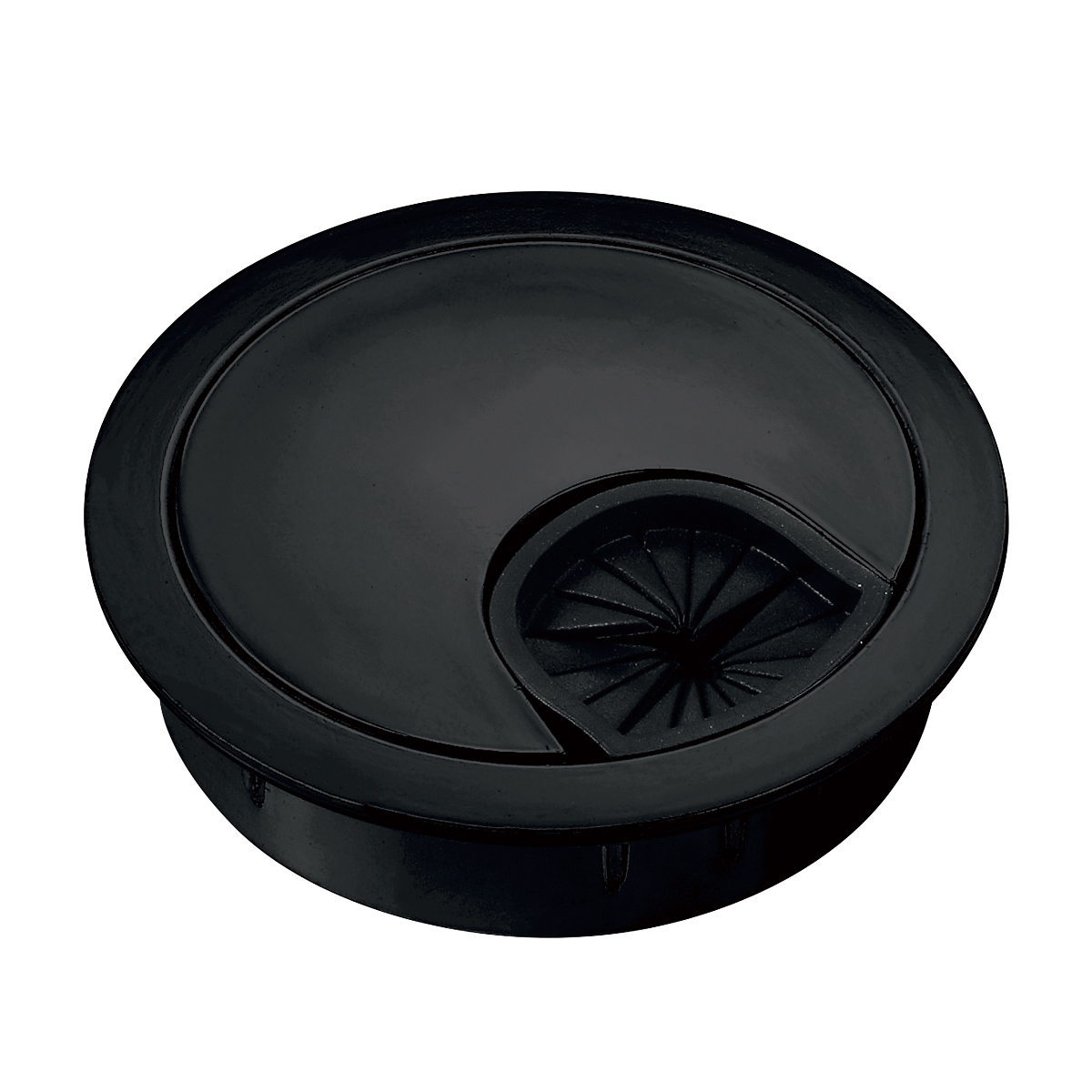

Floating vanities sit on 7518 L-brackets up to 450 mm deep. The 7510 grommet passes cables through desks. Ottoman-bed pull-outs roll on 7019 silent casters. Cabinet hangers 7020 and 7021, the 7407 drawer lock and the 7434 dressing-table mirror hinge complete the group.
Questions distributors ask.
How do I choose the 7532 lift-up mechanism?
Multiply the door height in mm by the door weight in kg (including the handle). Pick the torque band that contains the result: 1200–1800, 1700–2250, 2100–3100 or 2500–4000 kg·cm.
Do the folding stays need a hinge as well?
Yes. The 7534 and 7533 work alongside a normal cup hinge; the 7532 mechanism replaces the hinges.
Which cam lock fits which bolt?
Ø12 cams (7037, 7033) and Ø10 cams (7036, 7035) both take the 7039 and 7040 bolts; the bolt length 32, 35 or 40 mm is chosen by panel thickness and hole distance.
Are the connectors sold loose?
No, in bags of 500 or 1000 with 8 to 100 bags per carton, one carton per item minimum.
Can the stays be fitted left or right?
The 7534, 7533 and 7453 fit either side. The 7417 is front-mounted and cannot be used with inset (full-crank) hinges.
